Shop DAYTON

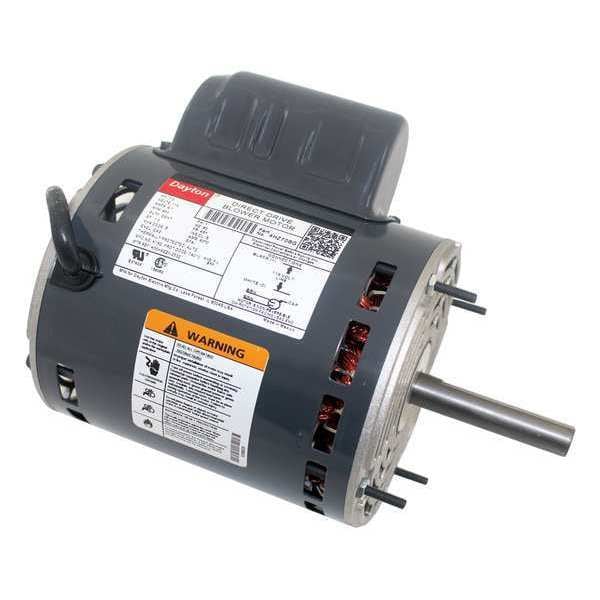

Motor, PSC, 1/3 HP, 850 RPM, 115V, 48Y, OAO

  • Mfr # 4HZ70BG

  • Zoro # G1720171

product price:  $326.99
/ea
Free Shipping & Returns

Key Features

Application
Mfr. No. 4HZ30, 4HZ56, 4HZ58
No. of Speeds
1
Nameplate RPM
850
Bolt Circle Dia.
5 1/8 in
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4HZ70BG
Zoro #
G1720171
UPC #
190735326497
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
5 1/8 in
Shaft Dia.
5/8 in
Shaft Length
3 in
Length Less Shaft
6 9/16 in
Overall Length
9 9/16 in
Body Dia.
5 5/8 in
Shaft Diameter
5/8 in
Frame Size
48Y
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in

Details

Application
Mfr. No. 4HZ30, 4HZ56, 4HZ58
No. of Speeds
1
Nameplate RPM
850
Phase
Single
Replacement For
Mfr. No. 4HZ30, 4HZ56, 4HZ58
Frame
48Y
Capacitor Required
Capacitor Included
Duty
Continuous
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Mounting Type
Ring/Stud
Motor Enclosure Design
Open Air-Over
Full Load Amps
4.1 A
Motor Mounting Position
All Angle
Motor Bearings
Ball
Ins. Class
B
Motor Thermal Protection
Auto
Motor Shaft Rotation
CCWSE
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Motor Design
Permanent Split Capacitor
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Sub Application
Direct Drive
HP
1/3
RPM Range
0-1,000
Voltage
115V AC
Hz
60 Hz
Standards
CSA Certified (258501), UL Component Recognition (E37403)
Item
Fan and Blower Motor
Duty Cycle
Continuous
Number of Speeds
1
Mounting
Stud
Frequency
60 Hz
Sub Application
Ventilator
Full Load Current @ 60 Hz
4.1 A
Shaft Design
Flat
Mounting Position
All Angle
Bearing Type
Ball
Product Type
Fan and Blower Motor
Insulation Class
B
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 115V AC, 4.1 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 3 in, Shaft Dia. 5/8 in
