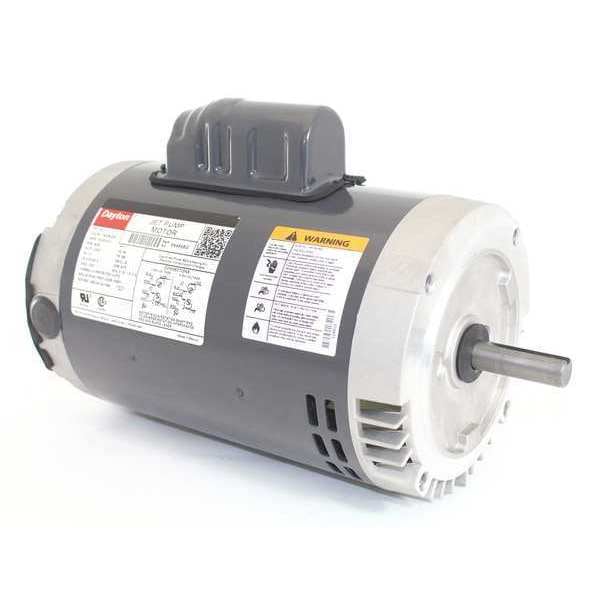

Dayton Motor, 1.5 HP, Jet Pump 5K469 - main

Motor, 1.5 HP, Jet Pump

  • Mfr # 5K469

  • Zoro # G2545112

product price:  $366.99
/ea
Free Shipping & Returns

Key Features

Hz
60 Hz
Motor Enclosure Design
Open Dripproof
Body Dia.
6.5 in
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal, Vertical Shaft Down
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K469
Zoro #
G2545112
UPC #
190735345153
Country of Origin
Multiple

Dimensions

Body Dia.
6.5 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Shaft Dia. (In.)
5/8
Frame Size
56C
Length Less Shaft
10 5/16 in
Body Diameter
6.5 in
Bolt Circle Diameter
5 1/8 in
Lead Length
8 1/2 in
Overall Length
12 3/8 in
Height
12 3/8 in
Shaft Diameter
5/8 in

Details

Hz
60 Hz
Motor Enclosure Design
Open Dripproof
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal, Vertical Shaft Down
Item
Jet Pump Motor
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Shaft Rotation
CW/CCW
Motor Application
Pump
Full Load Amps
18.2/9.2-9.1
Motor Design
Capacitor-Start
Nameplate RPM
3,450
HP
1 1/2
Motor Shaft Design
Keyed
Voltage
115/208-230V AC
Motor Mounting Type
Face
RPM Range
3,001-3,600
Ins. Class
B
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Bearings
Ball
Frame
56C
Motor Thermal Protection
Auto
Includes
Dripcover Kit for Vertical Mounting, Water Slinger, Shaft Key
Phase
Single
Nominal Efficiency
72.8 %
Motor Service Factor
1.3
Motor Sub Application
Jet Pump
Finish
Gray
Shaft Type
Keyed
Service Factor Current
21.8 A / 11.3-10.9 A
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1.3
Number of Wires
10
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Series
M
Duty Cycle
Continuous
Application
Pump
Shaft Design
Keyed
Starting Method
Across-the-Line
Includes Diaphragm
Diaphragm Not Included
Requires Overload Relay
No
Full Load Current @ 60 Hz
18.2/9.2-9.1 A
Weight
33 lb
Shaft Material
Stainless Steel
Frame Material
Stainless Steel
Manufacturers Warranty
1 yr
Frame Finish
Powder-Coated
Product Type
Pump Motor
Frequency
60 Hz
Bearing Type
Ball
Conduit Box Location
Exterior
Sub Application
Jet Pump
Nameplate RPM @ 50 Hz
No Applicable
NEMA Design Class
B
Number of Speeds
1
Insulation Class
B
Motor Enclosure Type
Open Drip Proof

Description

Jet Pump Motor, Body Dia. 6.5 in, Finish Gray, Frame 56C, Hz 60 Hz, Full Load Amps 18.2/9.2-9.1, HP 1 1/2, Includes Dripcover Kit for Vertical Mounting, Water Slinger, Shaft Key, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
