Shop DAYTON

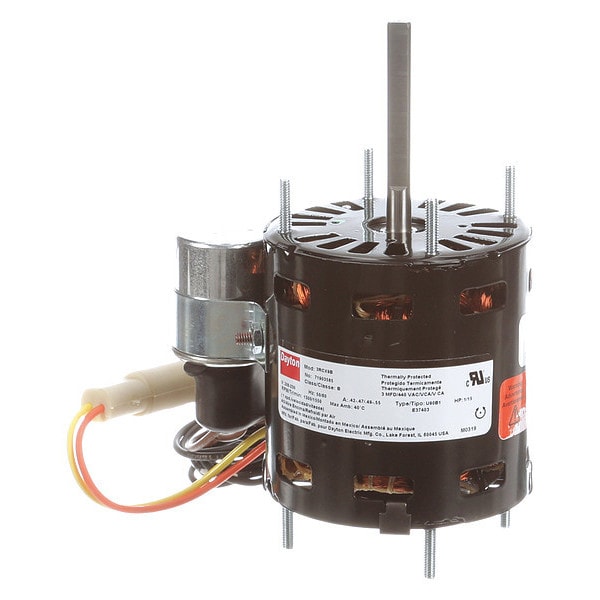

HVAC Motor, 1/15 HP, 1550 rpm, 208-230V, 3.3

  • Mfr # 71903585M
  • Zoro # G3392347
product price:
$
101.99
/ea
Free Shipping & Returns

Key Features

Voltage
208V AC to 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71903585M
Zoro #
G3392347
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
20 in
Shaft Length
2 1/2 in
Body Dia.
3 5/16 in
Length Less Shaft
3 15/16 in
Shaft Dia.
5/16 in
Body Diameter
3.3 in
Frame Size
3.3
Shaft Diameter
5/16 in
Overall Length
5 29/32 in
Wire Rope Length
5 29/32 in
Length
5 29/32 in

Details

Voltage
208V AC to 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/15
RPM Range
1,501-1,600
Motor Design
Permanent Split Capacitor
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Max. Ambient Temp.
40 Degrees C
Stud/Base Mtg. Pattern
2 in x 2 in
No. of Speeds
1
Motor Bearings
Ball
Full Load Amps
0.5-0.46 A
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Included
Item
HVAC Motor
Motor Application
HVAC/R
Ins. Class
B
Application
Replaces 1/15 hp PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
Phase
Single
Hz
50/60 Hz
Number of Shafts
1
Motor Shaft Design
Flat
Motor Sub Application
Direct Drive Fan/Blower
Frame
3.3
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Duty
Continuous
Mounting Stud Location
4/Both Ends
Standards
CSA Certified (244617), UL Recognized (E37403)
Includes
3 MFD 370VAC Capacitor
Mounting Pattern
2 x 2
Motor Mounting Type
Ring/Stud
Duty Cycle
Continuous
Mounting Stud Pattern
2 in x 2 in
HP @ 50Hz
1/15
RPM @ 50Hz
1,550 RPM
Motor Mounting Position
All Angle
Usable @ 208V
Usable at 208V
Voltage @ 50Hz
208-230V AC
Service Factor @ 50Hz
1
Full Load Amps @ 50Hz
0.50-0.46 A
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Wattage
49 W
Nameplate RPM @ 50 Hz
1,550 RPM
Shaft Design
Flat
Frequency
60/50 Hz
Bearing Type
Ball
Insulation Class
B
Drive Type
Direct Drive
Full Load Current @ 60 Hz
0.5-0.46 A
Frame Material
Steel
Nameplate Voltage @ 50 Hz
208-230V AC
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose
Nameplate Horsepower @ 50 Hz
1/15 hp
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Nameplate Service Factor @ 50 Hz
1
Full Load Current @ 50 Hz
0.50-0.46 A

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.5-0.46 A Full Load Amps, 3.3 Frame, Output Watts 49 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
