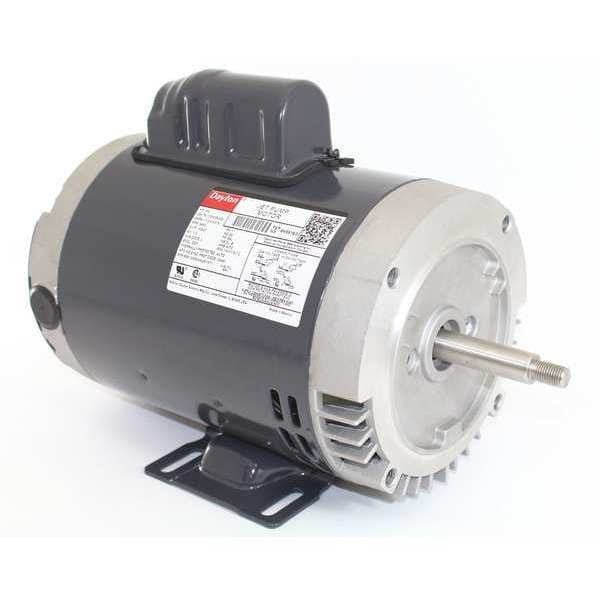

Dayton Motor, 3/4hp, Jet Pump 6K581 - main

Motor, 3/4hp, Jet Pump

  • Mfr # 6K581

  • Zoro # G2871364

product price:  $308.99
/ea
Free Shipping & Returns

Key Features

Motor Application
Pump
Ins. Class
B
Motor Shaft Design
Threaded
Voltage
115/208-230V AC
Body Dia.
6.5 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6K581
Zoro #
G2871364
UPC #
190735366172
Country of Origin
Multiple

Dimensions

Body Dia.
6.5 in
Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Shaft Dia. (In.)
5/8
Lead Length
6 1/2 in
Shaft Diameter
5/8 in
Height
12 1/8 in
Frame Size
56J
Body Diameter
6.5 in
Bolt Circle Diameter
5 7/8 in
Length Less Shaft
9 9/16 in
Overall Length
12 1/8 in

Details

Motor Application
Pump
Ins. Class
B
Motor Shaft Design
Threaded
Voltage
115/208-230V AC
Includes
Dripcover Kit for Vertical Mounting, Water Slinger
Motor Enclosure Design
Open Dripproof
Motor Mounting Position
Horizontal, Vertical Shaft Down
Motor Shaft Rotation
CCWSE
Motor Thermal Protection
Auto
Motor Mounting Type
Face/Base
Motor Sub Application
Jet Pump
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Design
Capacitor-Start
Phase
Single
Full Load Amps
11.0/5.4-5.5
RPM Range
3,001-3,600
Motor Service Factor
1.5
Nameplate RPM
3,450
Motor Bearings
Ball
Item
Jet Pump Motor
Standards
CSA Certified (258501), UL Recognized (E37403)
Nominal Efficiency
72.7 %
HP
3/4
Frame
56J
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Finish
Gray
No. of Speeds
1
Number of Speeds
1
Shaft Type
Threaded
Weight
28 lb
Application
Pump
Insulation Class
B
Nameplate RPM @ 50 Hz
No Applicable
Frequency
60 Hz
Frame Material
Stainless Steel
Requires Overload Relay
No
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
11.0/5.4-5.5 A
Includes Diaphragm
Diaphragm Not Included
Shaft Material
Stainless Steel
NEMA Design Class
B
Number of Wires
10
Product Type
Pump Motor
Manufacturers Warranty
1 yr
Starting Method
Across-the-Line
Motor Enclosure Type
Open Drip Proof
Service Factor Current
14.0 A / 7.3-7.0 A
Nameplate Service Factor @ 60 Hz
1.5
Bearing Type
Ball
Series
M
Shaft Design
Threaded
Sub Application
Jet Pump
Mounting Position
Horizontal
Duty Cycle
Continuous
Frame Finish
Powder-Coated
Conduit Box Location
Exterior

Description

Jet Pump Motor, Body Dia. 6.5 in, Finish Gray, Frame 56J, Hz 60 Hz, Full Load Amps 11.0/5.4-5.5, HP 3/4, Includes Dripcover Kit for Vertical Mounting, Water Slinger, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof
