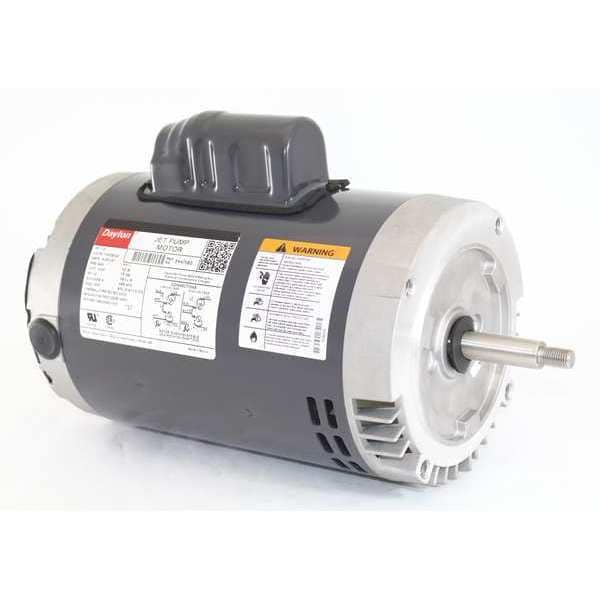

Dayton Motor, 1.5hp, Jet Pump 5K475 - main

Motor, 1.5hp, Jet Pump

  • Mfr # 5K475

  • Zoro # G1786705

product price:  $393.99
/ea
Free Shipping & Returns

Key Features

RPM Range
3,001-3,600
Motor Bearings
Ball
Motor Mounting Type
Face
Motor Design
Capacitor-Start
Nominal Efficiency
72.9 %
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K475
Zoro #
G1786705
UPC #
190735345177
Country of Origin
Multiple

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6.5 in
Shaft Length
2 5/8 in
Shaft Dia. (In.)
5/8
Height
12 7/8 in
Length Less Shaft
11 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 1/8 in
Lead Length
7 1/2 in
Overall Length
12 7/8 in
Frame Size
56J
Body Diameter
6.5 in

Details

RPM Range
3,001-3,600
Motor Bearings
Ball
Motor Mounting Type
Face
Motor Design
Capacitor-Start
Nominal Efficiency
72.9 %
Includes
Dripcover Kit for Vertical Mounting, Water Slinger
Frame
56J
Motor Mounting Position
Horizontal, Vertical Shaft Down
Ins. Class
B
Nameplate RPM
3,450
Voltage
115/208-230V AC
Hz
60 Hz
HP
1 1/2
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Item
Jet Pump Motor
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1.3
Motor Sub Application
Jet Pump
Motor Application
Pump
Motor Shaft Design
Threaded
Motor Shaft Rotation
CCWSE
Full Load Amps
18.2/9.2-9.1
Phase
Single
Motor Enclosure Design
Open Dripproof
Finish
Gray
Shaft Type
Threaded
Nameplate RPM @ 50 Hz
No Applicable
Sub Application
Jet Pump
Nameplate Service Factor @ 60 Hz
1.3
Service Factor Current
21.8 A / 11.3-10.9 A
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Stainless Steel
Weight
33 lb
Mounting Position
Horizontal
Series
M
Application
Pump
Product Type
Pump Motor
Bearing Type
Ball
Full Load Current @ 60 Hz
18.2/9.2-9.1 A
Shaft Material
Stainless Steel
Duty Cycle
Continuous
Motor Enclosure Type
Open Drip Proof
Requires Overload Relay
No
Manufacturers Warranty
1 yr
Shaft Design
Threaded
Includes Diaphragm
Diaphragm Not Included
Frame Finish
Powder-Coated
Conduit Box Location
Exterior
Efficiency Rating
Standard Efficiency (IE1)
NEMA Design Class
B
Number of Speeds
1
Starting Method
Across-the-Line
Number of Wires
10
Frequency
60 Hz

Description

Jet Pump Motor, Body Dia. 6.5 in, Finish Gray, Frame 56J, Hz 60 Hz, Full Load Amps 18.2/9.2-9.1, HP 1 1/2, Includes Dripcover Kit for Vertical Mounting, Water Slinger, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
