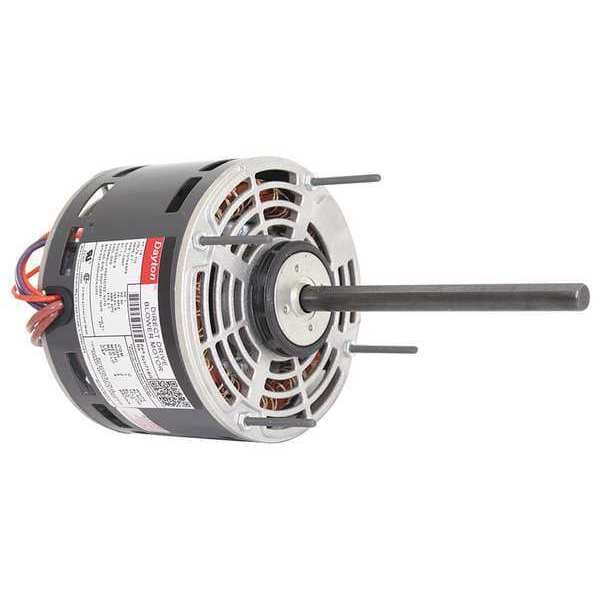

Motor, 1/6hp, D/D Blower

DAYTON| Zoro #: G1598511| Mfr #: 3LU71

$95.10 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Capacitor Required: 2MDV3Motor Shaft Design: FlatNameplate RPM: 1075
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1598511 Mfr #: 3LU71
Capacitor Required: 2MDV3Motor Shaft Design: Flat
Nameplate RPM: 1075Nominal Efficiency: 51.90%
Motor Application: HVAC/RMotor Bearings: Sleeve
Ins. Class: BMotor Thermal Protection: Auto
Application: Blowers, Fans and Air CirculatorsHP: 1/6
Includes: Kit - 2-1/2" ConversionFrame: 48YZ
RPM Range: 1001-1100Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Body Dia.: 5-5/8"Motor Mounting Position: All Angle
Item: Direct Drive Blower MotorLength Less Shaft: 5-3/16"
Standards: UL Recognized (E37403), CSA Certified (258501)Motor Mounting Type: Ring/Stud
Phase: 1Voltage: 115
Motor Sub Application: Direct Drive Fan/BlowerBolt Circle Dia.: 5-1/8"
Motor Design: Permanent Split CapacitorFull Load Amps: 2.8
Motor Enclosure Design: Open Air-OverDuty: Continuous
No. of Speeds: 4Shaft Dia.: 1/2"
Hz: 60Motor Service Factor: 1.00
Overall Length: 11-3/16"Ring to Ring Center: 4-3/4"
Motor Shaft Rotation: CW/CCWShaft Length: 6"
Max. Ambient Temp.: 40 Degrees CCountry of Origin (subject to change): Mexico

Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Design, Open Air-Over Motor Enclosure Design, 1/6 HP, 1075 Nameplate RPM, Voltage 115, 2.8 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Motor Service Factor 1.00, Max. Ambient Temp. 40 Degrees C, Ins. Class B, Duty Continuous, No. of Speeds 4, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle, Motor Bearings Sleeve, Motor Thermal Protection Auto, Motor Shaft Rotation CW/CCW, Length Less Shaft 5-3/16 In.
