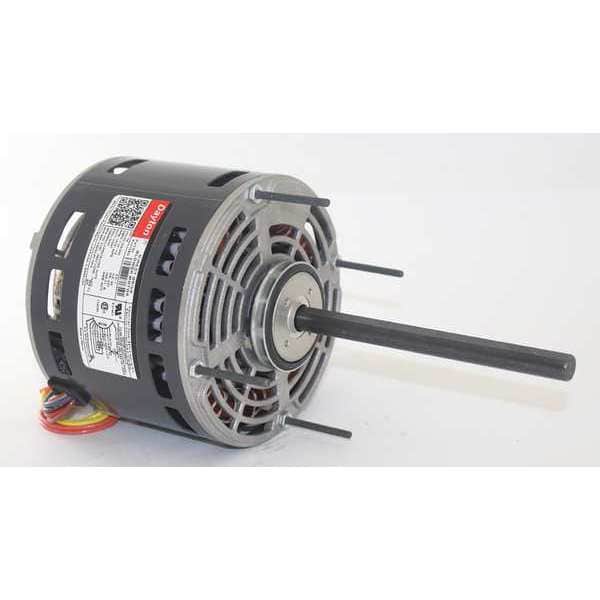

Motor, 1/6hp, D/D Blower

DAYTON| Zoro #: G0366974| Mfr #: 3LU72

$97.90 /ea

This item ships free. Details.Standard ground shipping.
Details:
Bolt Circle Dia.: 5-1/8"
Standards: UL Recognition (E37403), CSA Certification (258501)
RPM Range: 1001-1100
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0366974 Mfr #: 3LU72
Bolt Circle Dia.: 5-1/8"Standards: UL Recognition (E37403), CSA Certification (258501)
RPM Range: 1001-1100Overall Length: 11-3/16"
Body Dia.: 5-5/8"Ring to Ring Center: 5"
HP: 1/6Motor Application: HVAC/R
Nominal Efficiency: 60.0%Ins. Class: B
Max. Ambient Temp.: 40 Degrees CCapacitor Required: Included
Includes: CapacitorVoltage Compatibility: 115/208-230, 208-230, 208-240
Duty: ContinuousLength Less Shaft: 5-3/8"
Motor Service Factor: 1.00Phase: 1
Item: Direct Drive Blower MotorNo. of Speeds: 4
Motor Shaft Rotation: CW/CCWFrame: 48YZ
Nameplate RPM: 1075Motor Bearings: Sleeve
Shaft Dia.: 1/2"Motor Design: Permanent Split Capacitor
Motor Mounting Type: Ring/StudMotor Mounting Position: All Angle
Motor Shaft Design: Double-FlatResilient Ring Dia.: 2-1/4"
Voltage: 208-230Application: Blowers, Fans and Air Circulators
Motor Thermal Protection: AutoMotor Enclosure Design: Open Air-Over
Hz: 60Motor Sub Application: Direct Drive Fan/Blower
Country of Origin (subject to change): Mexico

Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/6 HP, 1075 Nameplate RPM, Voltage 208-230, 1.1-1.0 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 4, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 5-3/16 In., Overall Length 11-3/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In.
