Shop DAYTON

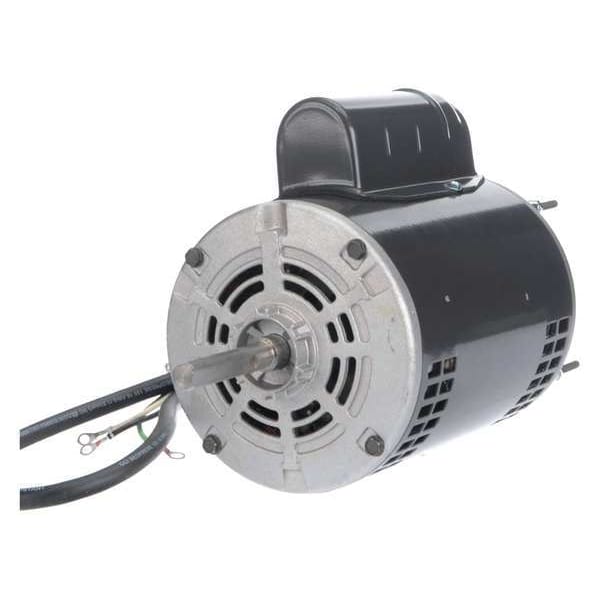

Motor, PSC, 3/4 HP, 1725,115/230V, 48Z, OAO

  • Mfr # 5BE56
  • Zoro # G1260287
product price:
$
435.99
/ea
Free Shipping & Returns

Key Features

Ins. Class
B
Duty
Continuous
Length Less Shaft
8 13/16 in
No. of Speeds
1
Body Dia.
5 11/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5BE56
Zoro #
G1260287
UPC #
190735342190
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 13/16 in
Body Dia.
5 11/16 in
Stud Size
#10-32
Shaft Length
2 1/2 in
Shaft Dia.
1/2 in
Bolt Circle Dia.
5 1/8 in
Overall Length
10 7/32 in
Mounting Stud Thread Size
#10-32
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Frame Size
48Z
Body Diameter
5.7 in
Wire Rope Length
10 7/32 in
Length
10 7/32 in

Details

Ins. Class
B
Duty
Continuous
No. of Speeds
1
Full Load Amps
7.0/3.5 A
HP
3/4
RPM Range
1,701-1,800
Motor Sub Application
Direct Drive
Motor Application
HVAC/R
Mounting Stud Pattern
3 5/8 in
Mounting Stud Location
4/Opposite Shaft End
Voltage
115V AC, 230V AC
Motor Shaft Design
Flat
Standards
CSA Certified, UL Recognized
Motor Enclosure Design
Open Air-Over
Motor Bearings
Ball
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Hz
60 Hz
Application
Fan/Blower
Max. Ambient Temp.
40 Degrees C
Motor Design
Permanent Split Capacitor
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Nameplate RPM
1,725
Motor Thermal Protection
Auto
Frame
48Z
Item
Fan and Blower Motor
Capacitor Required
Capacitor Included
Motor Mounting Type
Ring/Stud
Motor Mounting Position
All Angle
Phase
Single
Includes
Capacitor
Duty Cycle
Continuous
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Mounting Holes
(4) #10-32
Number of Shafts
1
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F3
Mounting
Stud
Number of Speeds
1
Product Type
Fan and Blower Motor
Shaft Design
Flat
Insulation Class
B
Drive Type
Direct Drive
Full Load Current @ 60 Hz
7.0/3.5 A
Frame Material
Steel
Sub Application
Ventilator
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Mounting Position
All Angle
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 7.0/3.5 A Full Load Amps, 48Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
