Dayton Motor, 3/4hp, D/D Blower 4M183 - main

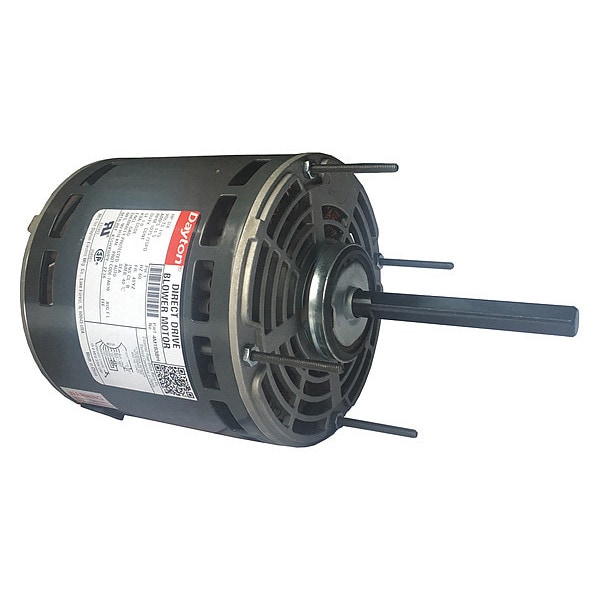

Motor, 3/4hp, D/D Blower

  • Mfr # 4M183

  • Zoro # G3414214

product price: $225.99
/ea
Free Shipping & Returns

Key Features

Motor Service Factor
1
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Voltage
115V AC
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4M183
Zoro #
G3414214
UPC #
190735330128
Country of Origin
Multiple

Dimensions

Length Less Shaft
6 7/16 in
Shaft Length
4 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/4 in
Bolt Circle Dia.
5 1/8 in
Overall Length
10 7/16 in
Stud Size
8-32 NC 2A Thread x 1 5/8 in

Details

Motor Service Factor
1
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Voltage
115V AC
Item
Direct Drive Blower Motor
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Includes
Kit for 2.5 in Hub Ring Assembly
Motor Bearings
Sleeve
Full Load Amps
11.5 A
Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Motor Sub Application
Direct Drive
Frame
48YZ
Motor Mounting Type
Ring/Stud
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Design
Double-Flat
Duty
Continuous
Capacitor Required
2MDV9
Phase
Single
Ins. Class
B
Standards
CSA Certification (258501), UL Recognition (E37403)
Motor Design
Permanent Split Capacitor
Ring to Ring Center
6 in
HP
3/4
Hz
60 Hz
Motor Mounting Position
All Angle
Nameplate RPM
1,075
No. of Speeds
3
Motor Enclosure Design
Open Air-Over
Application
Blowers, Fans and Air Circulators
Duty Cycle
Continuous
Number of Speeds
3
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 11.5 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud, Motor Mounting Position All Angle, Shaft Length 4 in, Shaft Dia. 1/2 in
