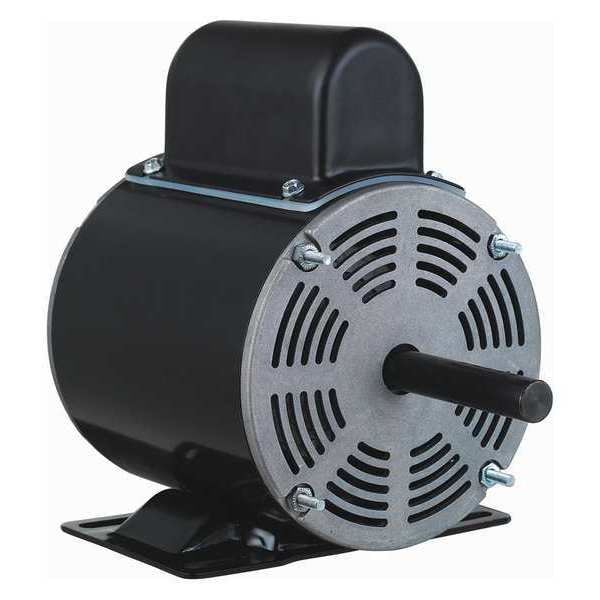

Direct Drive Blower Motor, 1/15 hp

  • Mfr # GGS_47830

  • Zoro # G6424008


product price:  $117.99
/ea
Free Shipping & Returns

Key Features

HP
1/15
Standards
UL (1004)
Overall Length
9 1/8 in
Length Less Shaft
3 in
RPM Range
1,601-1,700
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GGS_47830
Zoro #
G6424008
UPC #
-
Country of Origin
China

Dimensions

Overall Length
9 1/8 in
Length Less Shaft
3 in
Shaft Length
225 mm
Body Dia.
4.9 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
1/2 in
Bolt Circle Dia.
4 1/2 in
Body Diameter
124 mm
Bolt Circle Diameter
114 mm
Shaft Diameter
12 11/16 mm
Frame Size
Non-Standard

Details

HP
1/15
Standards
UL (1004)
RPM Range
1,601-1,700
Motor Mounting Type
Yoke
Voltage
115V AC
Replacement For
Dayton 1ZCN7D
Voltage Compatibility
115V AC, 120V AC, 115/230V AC, 115/208-230V AC, 120/240V AC
Capacitor Required
Capacitor Included
Full Load Amps
1.2 A
No. of Speeds
1
Application
Fan/Blower
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Ins. Class
B
Nameplate RPM
1,650
Motor Shaft Design
Keyed
Frame
Non-Standard
Motor Shaft Rotation
CWSE
Motor Design
Permanent Split Capacitor
Hz
60
Motor Enclosure Design
Totally Enclosed Air-Over
Phase
Single
Item
Definite Purpose HVAC Motor
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Air-Over
Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Ambient Temperature - Maximum
40 Degrees C
Product Type
Definite Purpose HVAC Motor
Efficiency Rating
Standard Efficiency (IE1)
Frame Material
Steel
Bearing Type
Ball
Manufacturers Warranty
1 yr
Duty
Continuous
Shaft Design
Keyed
Conduit Box Location
Interior
Insulation Class
B
Full Load Current @ 60 Hz
1.2 A
Drive Type
Direct Drive
Frequency
60 Hz
Sub Application
Fan/Blower
Usable @ 200V
Not Usable at 200V
Compatible Brand
Dayton

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp HP, Nameplate RPM 1,650 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.2 A, Non-Standard Frame, Replacement For Dayton 1ZCN7D, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over
