Dayton

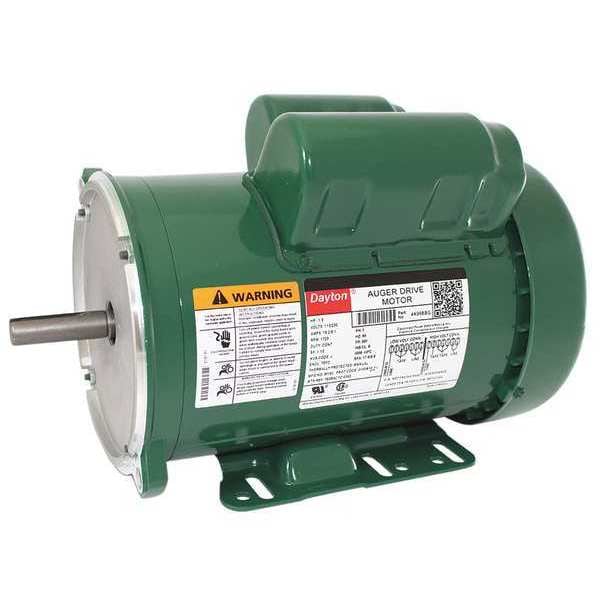

Auger Drive Motor, Capacitor-Start, 1 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 56Y Frame

product price: $565.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start
  • Phase Single
  • HP 1 1/2
  • RPM Range 1,701-1,800
  • Voltage 115/230V AC
See all product information

Product Information

Dimensions

Overall Length 13 15/16 in
Length Less Shaft 12 1/16 in
Shaft Length 1 7/8 in
Shaft Dia. 5/8 in

Details

Item Auger Drive Motor
Motor Design Capacitor-Start
Phase Single
HP 1 1/2
RPM Range 1,701-1,800
Voltage 115/230V AC
Frame 56Y
Motor Service Factor 1.15
Motor Thermal Protection Manual
Motor Enclosure Design Totally Enclosed Fan-Cooled
Nameplate RPM 1,725
Motor Application Farm Duty
Motor Frame Material Rolled Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face/Base
Motor Shaft Design Keyed
Motor Sub Application Auger
Motor Shaft Rotation CW/CCW
Standards CSA Certified (258501), UL Recognized (E37403)
Includes Gasketed Conduit Box and Capacitor Cover, Shaft Extension beyond fan guard for manual cranking and Shaft Key
Item - Farm Duty Motors Auger Drive Motor
Duty Continuous
Ins. Class B
Finish Enamel
Motor Bearings Ball
Hz 60 Hz
Max. Ambient Temperature 40 Degrees C
Capacitor Required Included
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Full Load Amps 16.2/8.1 A
Nominal Efficiency 80.5 %
No. of Speeds 1
Max. Ambient Temp. 40 Degrees C
Duty Cycle Continuous

Description

Auger Drive Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 16.2/8.1 A, 56Y Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel
