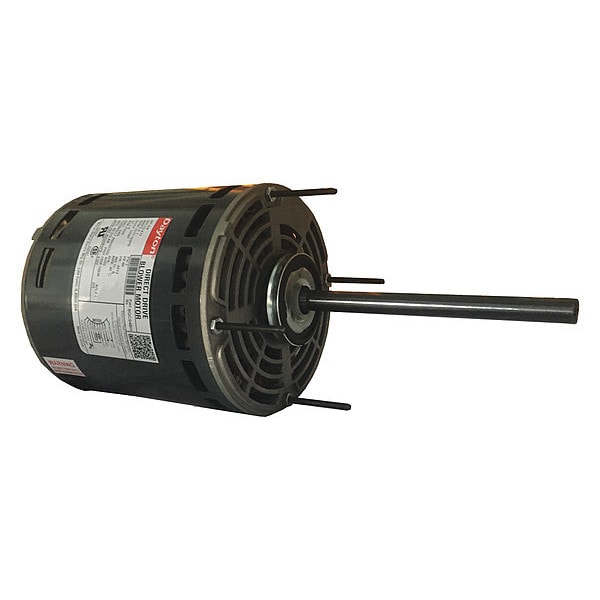

Dayton Motor, 3/4hp, D/D Blower 6GC94 - main

Motor, 3/4hp, D/D Blower

  • Mfr # 6GC94

  • Zoro # G2617903

product price: $262.99
/ea
Free Shipping & Returns

Key Features

Motor Shaft Rotation
CW/CCW
Bolt Circle Dia.
5 1/8 in
Includes
Split Rings to Increase Ring Diameter to 2 1/2 in
Shaft Length
6 in
Motor Mounting Position
All Angle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6GC94
Zoro #
G2617903
UPC #
190735363621
Country of Origin
China

Dimensions

Bolt Circle Dia.
5 1/8 in
Shaft Length
6 in
Body Dia.
5 5/8 in
Overall Length
13 3/16 in
Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/4 in
Length Less Shaft
7 3/16 in
Stud Size
#8-32

Details

Item
Direct Drive Blower Motor
Motor Shaft Rotation
CW/CCW
Includes
Split Rings to Increase Ring Diameter to 2 1/2 in
Motor Mounting Position
All Angle
Full Load Amps
4.1 A
Motor Thermal Protection
Auto
RPM Range
1,001-1,100
Voltage Compatibility
208-230/277V AC, 230/277V AC, 265V AC, 277/230V AC, 277V AC
Motor Mounting Type
Ring/Stud
Voltage
277V AC
Application
Blowers, Fans and Air Circulators
Motor Application
HVAC/R
Hz
60 Hz
HP
3/4
Motor Design
Permanent Split Capacitor
Nominal Efficiency
68.7 %
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Phase
Single
Ins. Class
B
Motor Bearings
Sleeve
Frame
48YZ
Motor Shaft Design
Double-Flat
Nameplate RPM
1,075
Motor Enclosure Design
Open Air-Over
Ring to Ring Center
6 3/4 in
Standards
CSA Certified (258501), UL Recognized (E37403)
No. of Speeds
3
Duty
Continuous
Capacitor Required
2MDV9
Motor Sub Application
Direct Drive
Duty Cycle
Continuous
Number of Speeds
3
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 277V AC, 4.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud, Motor Mounting Position All Angle, Shaft Length 6 in, Shaft Dia. 1/2 in
