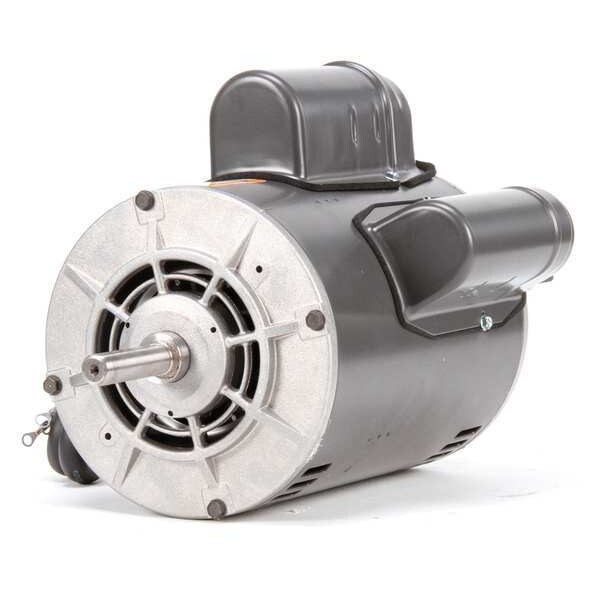

Motor, Cap St, 1.5 HP, 1725, 115/208-230, 56Z

DAYTON| Zoro #: G1217194| Mfr #: 5BE60

$690.98 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1217194 Mfr #: 5BE60
Voltage: 115/208-230Hz: 60
Motor Shaft Rotation: CW/CCWMotor Bearings: Ball
Phase: 1Ins. Class: B
No. of Speeds: 1Motor Application: HVAC/R
Motor Enclosure Design: Open DripproofNameplate RPM: 1725
Motor Thermal Protection: AutoMotor Design: Capacitor-Start
Voltage Compatibility: 115, 120, 208, 230, 240, 115/208-230, 115/230, 120/240, 208-230, 208-240Shaft Dia.: 5/8"
Duty: ContinuousMotor Mounting Position: All Angle
Motor Mounting Type: StudMotor Sub Application: Direct Drive Fan/Blower
Max. Ambient Temp.: 40 Degrees CLength Less Shaft: 10-1/16"
Stud Size: #10-32Item: Direct Drive Blower Motor
Standards: CSA Certified MotorBody Dia.: 6-1/2"
HP: 1-1/2Mounting Stud Pattern: 4-1/4" x 4-1/4"
Bolt Circle Dia.: 6-1/16"Full Load Amps: 13.2/7.2-6.6
Mounting Stud Location: Opposite Shaft EndFrame: 56Z
Application: Blowers, Fans and Air CirculatorsMotor Service Factor: 1.15
Shaft Length: 2-1/4"Motor Shaft Design: Flat
Capacitor Required: IncludedCountry of Origin (subject to change): United States

Product Description

Direct Drive Blower Motor, Capacitor-Start Motor Type, Open Dripproof Enclosure, 1-1/2 HP, 1725 Nameplate RPM, Voltage 115/208-230, 13.2/7.2-6.6 Full Load Amps, 60 Hz, 1 Phase, 56Z Frame, Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 1, Mounting Stud, Shaft Orientation All Angle, Bearings Ball, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 6-1/2 In., Length Less Shaft 10-1/16 In., Shaft Dia. 5/8 In., Shaft Length 2-1/4 In.
