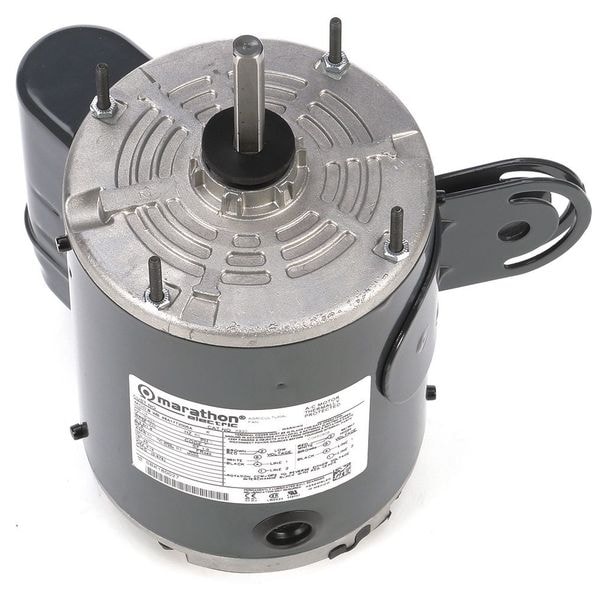

Pedestal Fan Motor, 1/4 hp

  • Mfr # 048A17T2005
  • Zoro # G8796611
product price:
$
222.99
/ea
Free Shipping & Returns

Key Features

Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Shaft Dia.
1/2 in
Motor Shaft Design
Double-Flat
Motor Service Factor
1
Body Dia.
5 11/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
048A17T2005
Zoro #
G8796611
UPC #
-
Country of Origin
Mexico
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Shaft Design
Double-Flat
Motor Service Factor
1
Standards
CE Listed, CSA Certified, UL Recognized
Application
Pedestal Fan
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Hz
60 Hz
Item
Pedestal Fan Motor
Full Load Amps
3.6/1.8 A
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Nonventilated
Duty
Continuous
Voltage
115V AC, 230V AC
Phase
Single
Motor Sub Application
Pedestal Fan
HP
1/4
Capacitor Required
Capacitor Included
Nameplate RPM
1,625
Motor Thermal Protection
Auto
Motor Bearings
Ball
10 Ft. Cord and Pull Chain Switch
No
RPM Range
1,001-1,100
Frame
48Z
Motor Mounting Type
Yoke
Mounting Stud Pattern
4 Clamp Bolts
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Duty Cycle
Continuous
Conduit Box Position
F1
Stud Quantity
4
Output Watts
190 W
Weight
22 lb
Features
Single Speed Model
Extended Thru-Bolts
Yes
Conduit Box Location
Exterior
Removable Base
No
Includes
Capacitor
Motor Mounting Position
Horizontal or Vertical Shaft Up
Nominal Efficiency
68 %
Sub Application
Pedestal Fan
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
3.6/1.8 A
Wattage
190 W
Bearing Type
Ball
Manufacturers Warranty
1 yr
Frequency
60 Hz
Product Type
Pedestal Fan Motor
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Shaft Design
Double Flat
Frame Material
Steel

Dimensions

Shaft Dia.
1/2 in
Body Dia.
5 11/16 in
Manufacturers Warranty Length
1 yr
Shaft Length
2 1/2 in
Overall Length
10 9/16 in
Bolt Circle Dia.
5 1/8 in
Length Less Shaft
8 1/16 in
Mounting Stud Length
7/8 in
Stud Size
#10-32 UNF
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Body Diameter
5.7 in
Frame Size
48Z
Wire Rope Length
10 9/16 in
Length
10 9/16 in

Description

Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,625, No. of Speeds 1, Voltage 115/230V AC, 3.6/1.8 A Full Load Amps, 48Z Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Frame Material Steel
