Dayton

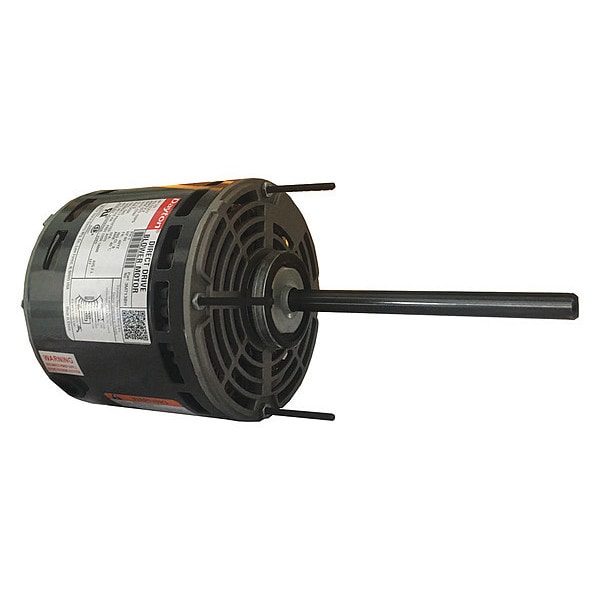

Blower Motor, PSC, 1/3 HP, 1075/3,277V, 48YZ

product price: $177.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Full Load Amps 2.2 A
  • Mounting Stud Pattern 3 5/8 in x 3 5/8 in
  • Motor Shaft Design Double-Flat
  • Application Blowers, Fans and Air Circulators
  • Hz 60 Hz
See all product information

Product Information

Dimensions

Resilient Ring Dia. 2 1/4 in
Bolt Circle Dia. 5 1/8 in
Body Dia. 5 5/8 in
Length Less Shaft 6 3/16 in
Shaft Length 6 in
Overall Length 12 3/16 in
Shaft Dia. 1/2 in
Stud Size 8-32 NC 2A Thread x 1 5/8 in

Details

Full Load Amps 2.2 A
Mounting Stud Pattern 3 5/8 in x 3 5/8 in
Motor Shaft Design Double-Flat
Application Blowers, Fans and Air Circulators
Hz 60 Hz
Motor Mounting Type Stud
Motor Design Permanent Split Capacitor
Voltage Compatibility 208-230/277V AC, 230/277V AC, 265V AC, 277/230V AC, 277V AC
Ins. Class B
Motor Service Factor 1
Motor Sub Application Direct Drive
Duty Continuous
Capacitor Required 2MDV3
Motor Mounting Position All Angle
Nameplate RPM 1,075
Motor Application HVAC/R
Voltage 277V AC
Frame 48YZ
Motor Bearings Sleeve
RPM Range 1,001-1,100
HP 1/3
Phase Single
Ring to Ring Center 5 3/4 in
Motor Shaft Rotation CW/CCW
Motor Thermal Protection Auto
Standards CSA Certification (258501), UL Component Recognition (E37403)
Max. Ambient Temp. 40 Degrees C
Item Direct Drive Blower Motor
Includes Split Rings to Increase Ring Diameter to 2 1/2 in
No. of Speeds 3
Motor Enclosure Design Open Air-Over
Duty Cycle Continuous
Number of Speeds 3
Mounting Stud

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 277V AC, Full Load Amps 2.2 A, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle
