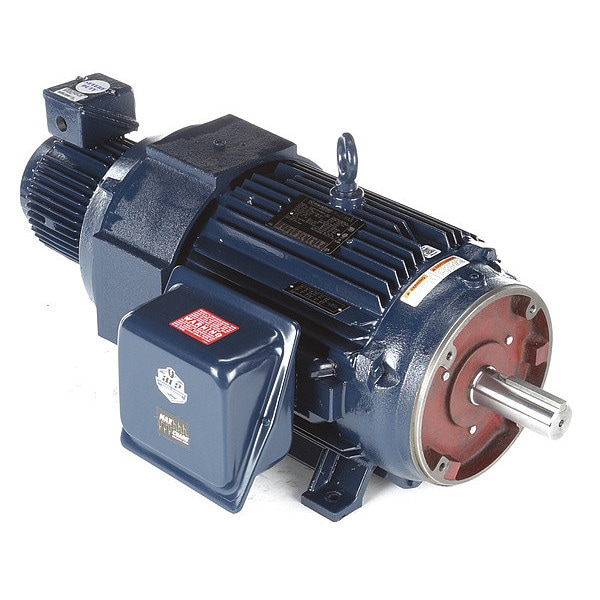

Vector Motor, 3-Phase, 25HP, 230/460V

  • Mfr # 284THFPA8086

  • Zoro # G1968747

product price:
$
8,386.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
25
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
284THFPA8086
Zoro #
G1968747
UPC #
-
Country of Origin
United States
Item
Vector Motor
Motor Design
Three-Phase
HP
25
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
284TC
Voltage
230/460V AC
Motor Thermal Protection
T-Stat
RPM Range
1,701-1,800
NEMA Design
A
Insulation Feature
Class F
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Finish
Enamel
Nominal Efficiency
88.5 %
Hz
60 Hz
Motor Mounting Type
Rigid Base
Ambient Temperature
40 Degrees C
Phase
Three
Ins. Class
H
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Motor Application
Crane
Warranty
3 yr
Motor Service Factor
1
Standards
CE, CSA, UL Recognized
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Frame Material
Cast Iron
Encoder Shaft
1 in x 1-3/4 in
Motor Efficiency Group
Energy Efficient
Motor Shaft Rotation
CW/CCW
Full Load Amps
63.0/31.5 A
Motor Shaft Design
Keyed
Duty
Continuous
Encoder Acceptable
Yes
Frame Material
Cast Iron
Max. Operating Frequency
90 Hz
Base
Rigid
Max. Ambient Temp.
104 Degrees F
Weight
500 lb
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1, F2
Motor Enclosure Type
Totally Enclosed Blower Cooled
Shaft Design
Keyed
Maximum Speed
1,800 RPM
Nameplate Service Factor @ 60 Hz
1
NEMA Design Class
A
Inverter Rated
Inverter Rated
Frame Finish
Enamel-Coated
Product Type
Vector Motor
Efficiency Rating
NEMA Standard Efficiency
Bearing Type
Ball
Manufacturers Warranty
3 yr
Insulation Class
H
Full Load Current @ 60 Hz
63.0/31.5 A
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Maximum Operating Frequency
90 Hz

Description

Vector Motor, Three Phase, Motor Design Three-Phase, 25 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 63.0/31.5 A, 284TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
