Shop All Split-Phase AC Motors
Dayton

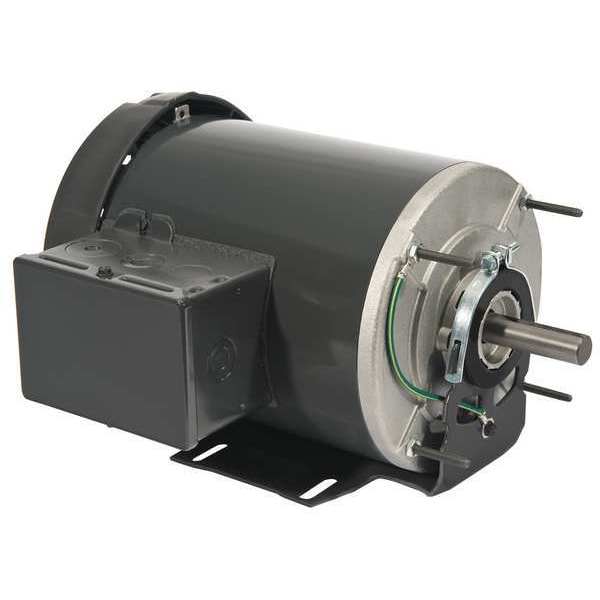

Mtr, 1/2HP, 1140RPM, 115V

product price: $482.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Service Factor 1
  • No. of Speeds 1
  • Manufacturers Warranty Length 1 yr
  • RPM Group 1101-1200
  • Motor Thermal Protection None
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Length Less Shaft 11 3/8 in
Overall Length 13 5/16 in
Shaft Length 1 7/8 in
Shaft Dia. 5/8 in

Details

Motor Service Factor 1
No. of Speeds 1
RPM Group 1101-1200
Motor Thermal Protection None
HP 1/2
Max. Ambient Temp. 104 Degrees F
Motor Application General Application
Footnotes 40
Motor Shaft Design Keyed
RPM Range 1,101-1,200
Full Load Amps 8.7 A
Motor Enclosure Design Totally Enclosed Fan-Cooled
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Nominal Efficiency 63.4 %
Frame Material Rolled steel
Motor Shaft Rotation CW/CCW
Standards CSA (258501), UL (E47479)
Motor Efficiency Group Standard Efficient
Phase Single
Duty Continuous
Frame 56
Voltage 115V AC
Hz 60 Hz
Motor Design Split-Phase
Item General Purpose Motor
Motor Mounting Type Cradle Base
Motor Frame Material Rolled Steel
Motor Bearings Ball
Nameplate RPM 1,140
Ins. Class B
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115V AC, Full Load Amps 8.7 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
