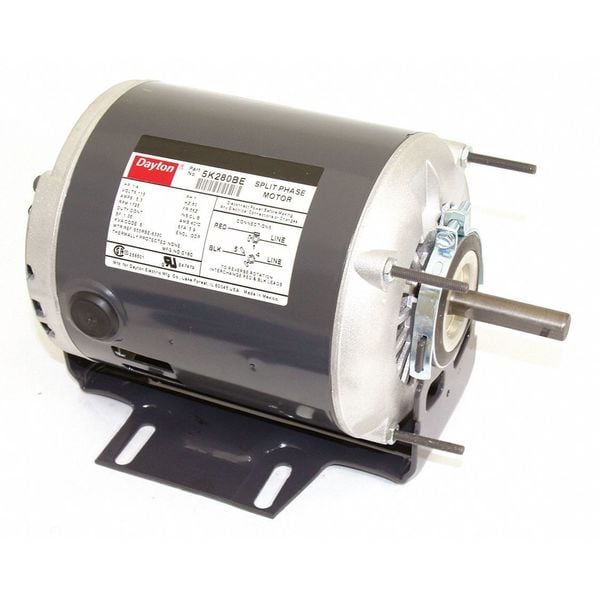

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 56Z

DAYTON| Zoro #: G1004963| Mfr #: 5K280

$100.61 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Shaft Dia.: 1/2"Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Motor Enclosure Design: Open Dripproof
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1004963 Mfr #: 5K280
Shaft Dia.: 1/2"Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Enclosure Design: Open DripproofFootnotes: 31,39,50
Hz: 60Motor Design: Split-Phase
Voltage: 115Max. Ambient Temp.: 40 Degrees C
Motor Mounting Type: Cradle BaseMotor Shaft Rotation: CW/CCW
Motor Service Factor: 1.35Full Load Amps: 5.3
Nameplate RPM: 1725Motor Thermal Protection: None
HP: 1/4Item: General Purpose Motor
RPM Range: 1701-1800Motor Application: General Application
Shaft Length: 1-7/8"Frame: 56Z
No. of Speeds: 1Frame Material: Rolled steel
Duty: ContinuousOverall Length: 9-13/16"
Manufacturers Warranty Length: 1 yr.Motor Bearings: Ball
Motor Efficiency Group: Standard EfficientIns. Class: B
Nominal Efficiency: 52.0%RPM Group: 1701-1800
Phase: 1Standards: UL (E47479), CSA (156060)
Length Less Shaft: 7-15/16"Motor Shaft Design: Flat
Country of Origin (subject to change): Mexico

Description

General Purpose Motor, Split-Phase, Open Dripproof, 1/4 HP, Nameplate RPM 1725, 56Z Frame, Voltage 115, 60 Hz, 1 Phase, 5.3 Full Load Amps, No. of Speeds 1, Motor Mounting Type Cradle Base, Motor Thermal Protection None, Ins. Class B, 1.35 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 9-13/16 In., Motor Shaft Design Flat
