Dayton

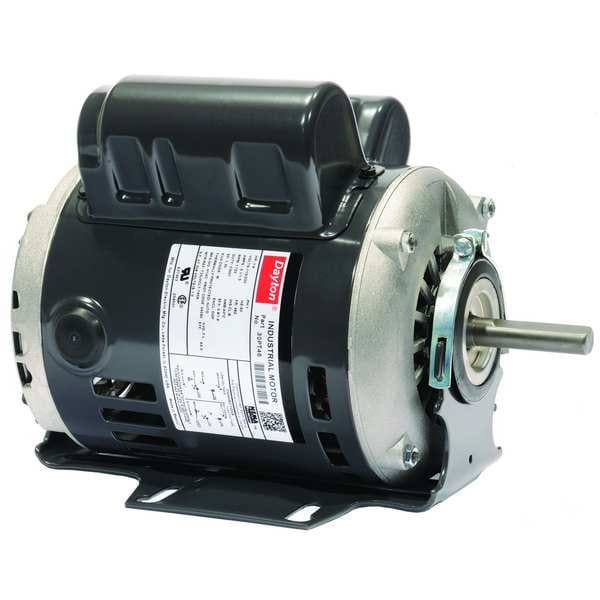

MTR, CS/CR, ODP, 1/4HP, 1725, 48Z, EFF 68.5

product price: $282.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start/Run
  • Phase Single
  • HP 1/4
  • RPM Range 1,701-1,800
  • Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Shaft Length 1 7/8 in
Length Less Shaft 8 3/8 in
Overall Length 10 5/16 in
Manufacturers Warranty Length 1 yr

Details

Item General Purpose Motor
Motor Design Capacitor-Start/Run
Phase Single
HP 1/4
RPM Range 1,701-1,800
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Voltage 115/230V AC
Frame 48Z
Motor Thermal Protection Auto
Motor Enclosure Design Open Dripproof
Motor Mounting Type Cradle Base
Full Load Amps 3.1/1.5 A
Duty Continuous
Motor Efficiency Group Premium Efficient
Motor Frame Material Rolled Steel
Motor Application General Application
Frame Material Rolled steel
Ins. Class B
Motor Bearings Ball
RPM Group 1701-1800
Motor Service Factor 1.35
Green Certification or Other Recognition Energy Aware
Nameplate RPM 1,725
Motor Mounting Position Horizontal
Motor Shaft Design Flat
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Includes Start Cap 297MFD @ 125V, Run Cap 20MFD @ 370V
Motor Shaft Rotation CW/CCW
Max. Ambient Temp. 104 Degrees F
Standards CSA (258501), UL (E47479)
Hz 60 Hz
Nominal Efficiency 68.5 %
No. of Speeds 1
Inverter Rated No
Duty Cycle Continuous
Capacitor Required Yes

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.1/1.5 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Flat

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • Indicates a new DOE energy compliant motor.
