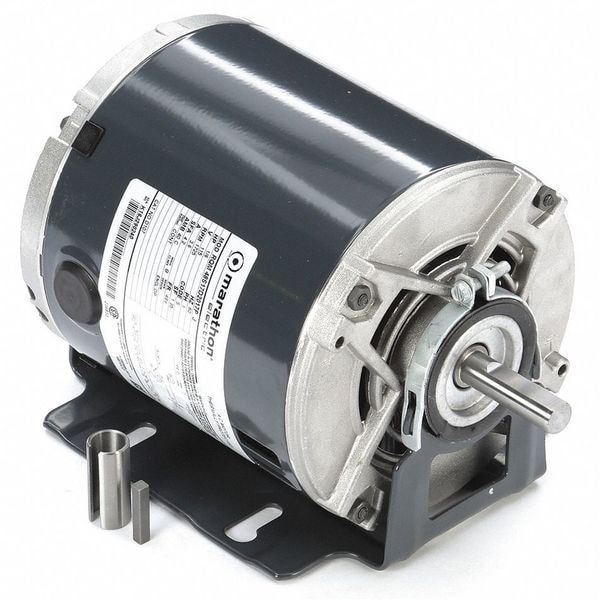

Condenser Fan Motor, 1/6 HP, 48 Frame

  • Mfr # 048S17D2017

  • Zoro # G7343161

product price:
$
182.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/6
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048S17D2017
Zoro #
G7343161
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 7/16 in
Length Less Shaft
7 1/2 in
Body Dia.
5 5/8 in
Overall Length
9 in
Resilient Ring Dia.
2 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1/2 in
Frame Size
48
Body Diameter
5.6 in
Resilient Ring Diameter
2 1/4 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Phase
Single
HP
1/6
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Ring/Stud
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings
Ball
Duty
Continuous
Hz
60 Hz
Capacitor Required
Capacitor Not Required
Application
Fan/Blower
Standards
CSA (LR2025), UL (E6312)
Nominal Efficiency
55 %
Motor Service Factor
1.35
Ins. Class
B
Full Load Amps
3.6 A
Motor Shaft Design
Flat
Ring to Ring Center
7 1/16 in
Motor Frame Material
Steel
Duty Cycle
Continuous
Weight
12 lb
Usable @ 200V
No
Usable @ 208V
No
Drive Type
Belt Drive
Frequency
60 Hz
Full Load Current @ 60 Hz
3.6 A
Frame Material
Steel
Shaft Design
Flat
Mounting Position
Horizontal
Product Type
Fan and Blower Motor
Manufacturers Warranty
1 yr
Bearing Type
Ball
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.35
Duty Rating
Commercial
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 3.6 A Full Load Amps, 48 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
