  11. MTR, CS/CR, ODP, 3/4 HP, 1725, 56C, EFF 81.8
Shop All Capacitor-Start & Capacitor-Run AC Motors
Dayton

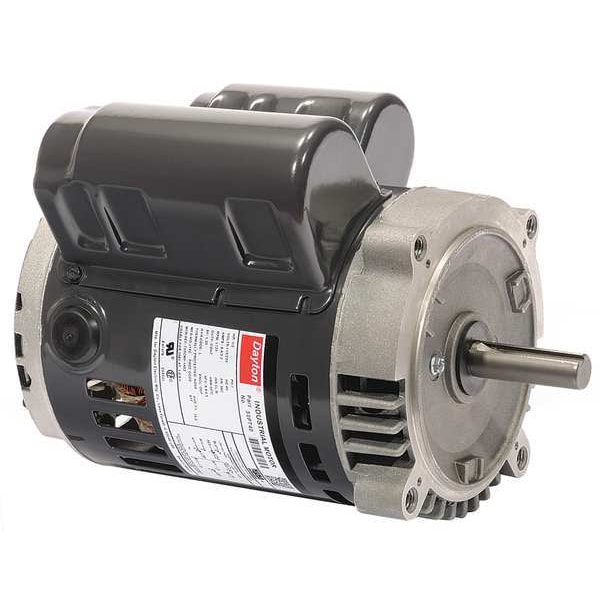

MTR, CS/CR, ODP, 3/4 HP, 1725, 56C, EFF 81.8

product price: $498.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start/Run
  • Phase Single
  • HP 3/4
  • RPM Range 1,701-1,800
  • Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 1 yr
Overall Length 11 15/16 in
Length Less Shaft 9 7/8 in
Shaft Length 1 7/8 in
Shaft Dia. 5/8 in

Details

Item General Purpose Motor
Motor Design Capacitor-Start/Run
Phase Single
HP 3/4
RPM Range 1,701-1,800
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame 56C
Voltage 115/230V AC
Motor Thermal Protection None
Motor Enclosure Design Open Dripproof
Motor Mounting Type Face
Full Load Amps 7.0/3.5 A
Max. Ambient Temp. 104 Degrees F
Frame Material Rolled steel
Inverter Rated No
Motor Service Factor 1.25
Standards CSA (258501), UL (E47479)
Motor Application General Application
Motor Bearings Ball
Green Certification or Other Recognition Energy Aware
No. of Speeds 1
Motor Efficiency Group Premium Efficient
Motor Mounting Position Horizontal
Hz 60 Hz
Nominal Efficiency 81.8 %
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Duty Continuous
Motor Shaft Design Keyed
Nameplate RPM 1,725
Motor Frame Material Rolled Steel
Motor Shaft Rotation CW/CCW
Includes Shaft Slinger, Start Cap 504MFD @ 220V, Run Cap 50MFD @ 370V
RPM Group 1701-1800
Ins. Class B
Duty Cycle Continuous
Capacitor Required Yes

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.0/3.5 A, 56C Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Keyed

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • Indicates a new DOE energy compliant motor.
