  5. Multi-Stage Booster Pump, 1-1/2, 208 to 240/480V AC, 3 Phase, 3/4 in NPT Inlet Size, 16 Stage

This item is Discontinued.

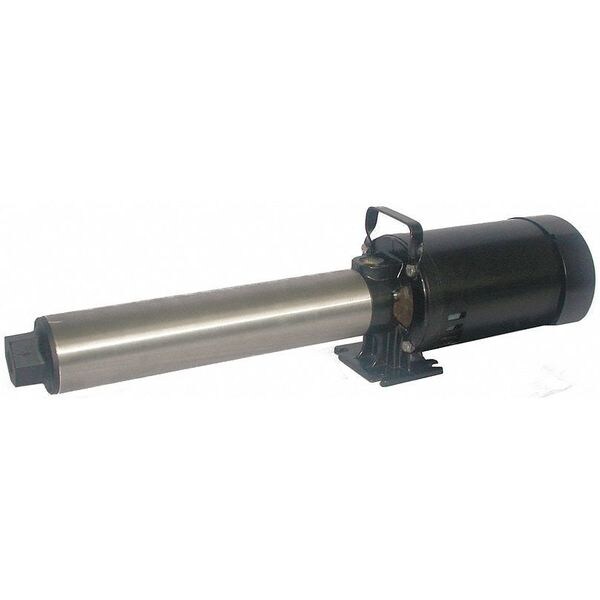

Dayton Multi-Stage Booster Pump, 1-1/2, 208 to 240/480V AC, 3 Phase, 3/4 in NPT Inlet Size, 16 Stage 5NYA0

Multi-Stage Booster Pump, 1-1/2, 208 to 240/480V AC, 3 Phase, 3/4 in NPT Inlet Size, 16 Stage (Discontinued)

  • Mfr # 5NYA0
  • Zoro # G2124507
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5NYA0
Zoro #
G2124507
UPC #
190735348185
Country of Origin
China

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Width
6-1/2"
Manufacturers Warranty Length
1 yr.
Length
28-3/4"
Height
9-1/2"

Details

Item
Multi-Stage Booster Pump
Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1-1/2
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
16
Max. Pressure - Pumps
194 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Open Dripproof
Motor Ambient Temp. Rating
65 Degrees C
Suction Lift
10 ft.
Agency Compliance
CSA, CUS Listed
Max. Liquid Temp.
140 Degrees F
Includes
Manual
GPM @ 20 PSI
15.3
Bearing Type
Permanently Lubricated, Maintenance Free
Hz
60
Max. Case Pressure
300 psi
Frame
56J
Outlet
3/4" FNPT
Stages
16
GPM @ 160 PSI
8.2
Wetted Materials
Noryl, Carbon/Ceramic, Buna N, Stainless Steel
GPM @ 100 PSI
10.2
Phase
3
GPM @ 180 PSI
6.6
GPM @ 40 PSI
14.3
Inlet
3/4" FNPT
Amps
6.5-6.93/3.46
HP
1-1/2
Seal Material
Carbon/Ceramic, Buna N, Stainless Steel
Motor RPM
3450
Impeller Material
Noryl
GPM @ 120 PSI
9.6
GPM @ 80 PSI
12.2
GPM @ 140 PSI
8.3
Impeller Type
Closed
Max. Pressure
194 psi
GPM @ 60 PSI
13.3
Duty
Continuous
Housing Material
Stainless Steel
GPM @ 10 PSI
15.5
Voltage
208-230/460
Motor Enclosure
ODP

Description

Multi-Stage Booster Pump, Phase 3, Motor Enclosure ODP, Amps 6.5-6.93/3.46
