  5. Outdoor Air Circulator, Floor Mount, 36 in Blade Dia, 120V, 8350/12,250 cfm, Non-Oscillating

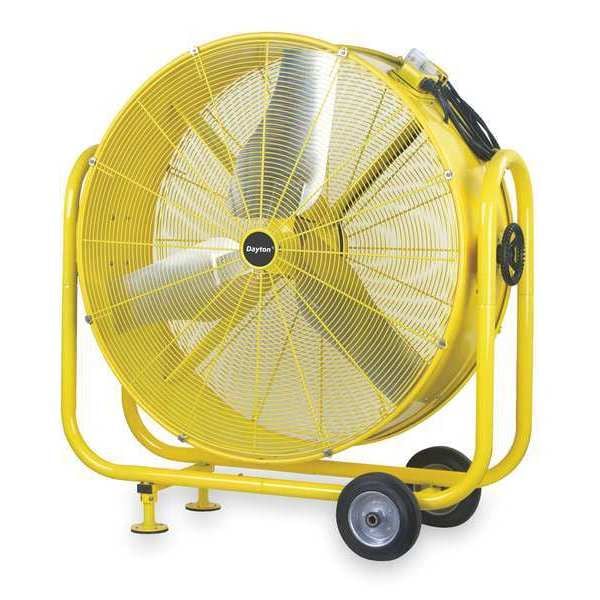

Dayton Outdoor Air Circulator, Floor Mount, 36 in Blade Dia, 120V, 8350/12,250 cfm, Non-Oscillating 2RDZ3 - main

Outdoor Air Circulator, Floor Mount, 36 in Blade Dia, 120V, 8350/12,250 cfm, Non-Oscillating

  • Mfr # 2RDZ3

  • Zoro # G3417416

product price:  $795.99
/ea
Item requires special delivery charges. A $55.00 per item surcharge will be applied.

Key Features

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V
Phase
1
Motor HP
1/2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2RDZ3
Zoro #
G3417416
UPC #
190735229798
Country of Origin
China

Dimensions

Blade Diameter
36 in
Max. Depth
15 in
Outside Dia.
41 in
Width
43 in
Shaft Dia.
5/8 in
Height
43 in
Fan Cord Length
9 ft
Height Adjustment
Fixed Height
Depth
15 in
Wheel Dia.
8 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V
Phase
1
Motor HP
1/2
Air Flow
8350/12,250 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Item
Air Circulator
Air Velocity @ 60 Ft.
210/80 fpm
Standards
cULus Listed
Number of Conductors
3
Mobile/Stationary
Mobile
Max. Ambient Temp.
104 Degrees F
Guard Material
Galvanized Steel
Bearing Type
Sealed Ball
Application
Spot Cooling
Watts
615/515
NEMA Plug Configuration
5-15P with GFCI
Hz
60 Hz
Fan Style
Outdoor
CFM High
12250
Environmental Applications
Industrial
Air Velocity @ 40 Ft.
260/220 fpm
Motor Type
Permanent Split Capacitor
Number of Blades
3
Air Velocity @ 20 Ft.
490/370 fpm
Housing Material
Galvanized steel
Motor RPM
825/650 RPM
Thermal Protection
Automatic Reset
Motor Enclosure
Totally Enclosed Air Over
Assembled
Partially Assembled
Fan Mounting Location
Floor
Wire Guard Finish
Polyester Powder Coated Safety Yellow
Motor Insulation
Class B
CFM Low
8350
Fan Accessory Style
Outdoor
Includes
8 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Assembly Required
Yes
Head Tilt Adjustment
50 Degrees Up to 10 Degrees Down
Wheeled Base
Mobile
Wheel Material
Steel/Rubber
RPM
825/650
Color
Safety Yellow
Fan Housing Material
Steel
Amps
5.3/4.9
Material
Galvanized steel
Motor hp
1/2 hp
NEMA plug Configuration
5-15p with GFCI

Description

High-Visibility Industrial Fan, Blade Dia. 36 in, Mobile, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 12,250, CFM Low 8350, Air Velocity @ 20 Ft. 490/370 fpm, Motor HP 1/2 hp, Motor RPM 825/650, Operating Amps 5.3/4.9, Fan Mounting Location Floor, Fan Accessory Style Outdoor, Fan RPM 825/650, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 615/515, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 41 In., Height 43 in, Width 43 in, Max. Depth 15 In.
