Dayton

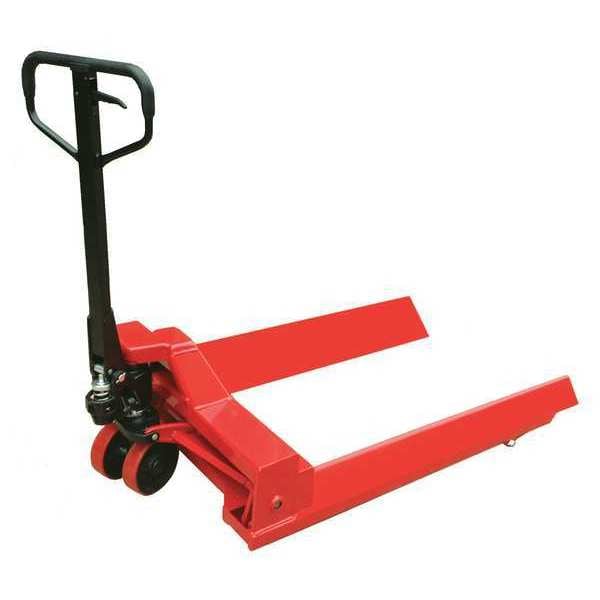

Pallet Jack, 63-1/2inLx39-3/8inWx48inH

Dayton Pallet Jack, 63-1/2inLx39-3/8inWx48inH 30LU69
Tap to zoom
Hover or click to zoom
$1,304.24
  • Item: Pallet Jack
  • Fork Style: Standard
  • Key Pallet Jack Feature: For Coils
See full product details
Item requires special delivery charges. A $150.00 per item surcharge will be applied.
Total: $1,304.24

Dayton #30LU69 Specifications

  • Item: Pallet Jack
  • Fork Style: Standard
  • Key Pallet Jack Feature: For Coils
  • Load Capacity: 4400 lb.
  • Pallet Jack Operation: Manual
  • Construction: Steel
  • Fork Height Lowered: 3-3/8"
  • Fork Height Raised: 7-1/2"
  • Fork Length: 48"
  • Fork Width: 6-1/4"
  • Width Across Forks: 39-3/8"
  • Width Between Forks: 24-1/2"
  • Overall Height: 48-7/8"
  • Overall Length: 65-3/8"
  • Overall Width: 39"
  • Steering Arc: 205 Degrees
  • Roller Material: Polyurethane
  • Roller Dia.: 3-1/8"
  • Wheel Material: Mold on Polyurethane
  • Wheel Base: 47"
  • Main Wheel Size: 7"
  • Finish: Powder Coated
  • Color: Red
  • Handle Material: Steel
  • Bearings: Sealed Ball
  • Grease Fittings: (1) Internal and (7) Bushing
  • Features: For Coils
  • Pallet Jack Style: Specialty
  • Handle: Steel
  • Frame Material: Steel
  • Frame Finish: Powder Coated
  • Number of Batteries: 0
  • Strokes To Maximum Lift Height: 16
  • Steer Wheel/Tread Material: Polyurethane
  • For Pallet Type: Open/Closed
  • Overall LxWxH: 65 3/8 in x 39 in x 48 7/8 in
  • Handle Type: Ergonomic
  • For Surface Type: Concrete
  • Fork Type: Fixed
  • Operation: Manual
  • Load Wheel Diameter: 3 1/8 in
  • Maximum Lifting Height: 7 1/2 in
  • Load Wheel Bearing Type: Ball Bearing
  • Assembled: Yes
  • Steer Wheel Diameter: 7 in
  • Load Wheel/Tread Material: Polyurethane
  • Minimum Lifting Height: 3 3/8 in
  • Fork Thickness: 1 7/8 in
  • Country of Origin (subject to change): China

Description

4,400 lb, Fork Style Standard, Fork Type Fixed, Fork Length 48 in, Fork Width 6 1/4 in, Width Across Forks 39 3/8 in, Width Between Forks 24 1/2 in, Overall Length 65 3/8 in, Overall Width 39 in, Overall Height 48 7/8 in, Frame Material Steel, Minimum Lifting Height 3 3/8 in, Maximum Lifting Height 7 1/2 in, Fork LxW 48 in x 6 1/4 in, Overall LxWxH 65 3/8 in x 39 in x 48 7/8 in
