Dayton

Pallet Jack, Foot and Hand Actuated

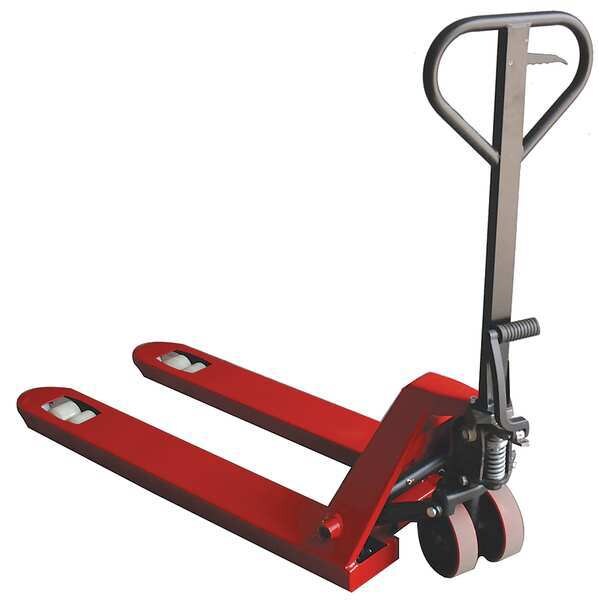

Dayton Pallet Jack, Foot and Hand Actuated 24L323
Tap to zoom
Hover or click to zoom
$958.29
  • Item: Pallet Jack
  • Fork Style: Standard
  • Key Pallet Jack Feature: General Purpose
See full product details
Item requires special delivery charges. A $104.00 per item surcharge will be applied.
Total: $958.29

Dayton #24L323 Specifications

  • Item: Pallet Jack
  • Fork Style: Standard
  • Key Pallet Jack Feature: General Purpose
  • Load Capacity: 5500 lb.
  • Pallet Jack Operation: Manual
  • Construction: Steel
  • Fork Height Lowered: 3"
  • Fork Height Raised: 7-1/2"
  • Fork Length: 48"
  • Fork Width: 6-1/4"
  • Width Across Forks: 27"
  • Width Between Forks: 14-1/2"
  • Overall Height: 48"
  • Overall Length: 67"
  • Overall Width: 27"
  • Steering Arc: 180 Degrees
  • Roller Dia.: 3"
  • Wheel Material: Mold on Polyurethane
  • Wheel Base: 47-1/2"
  • Main Wheel Size: 7"
  • Finish: Powder Coated
  • Color: Red
  • Handle Material: Steel
  • Pallet Jack Style: Standard
  • Handle: Steel
  • Frame Material: Steel
  • Frame Finish: Powder Coated
  • Steer Wheel Diameter: 7 in
  • Handle Type: Ergonomic
  • For Surface Type: Concrete
  • Load Wheel/Tread Material: Polyurethane
  • Fork Type: Fixed
  • Steer Wheel/Tread Material: Polyurethane
  • Minimum Lifting Height: 3 in
  • Number of Batteries: 0
  • Strokes To Maximum Lift Height: 12
  • For Pallet Type: Open/Closed
  • Overall LxWxH: 67 in x 27 in x 48 in
  • Maximum Lifting Height: 7 1/2 in
  • Assembled: Yes
  • Operation: Manual
  • Fork Thickness: 1 7/8 in
  • Load Wheel Diameter: 3 in
  • Load Wheel Bearing Type: Ball Bearing
  • Country of Origin (subject to change): China

Description

5,500 lb, Fork Style Standard, Fork Type Fixed, Fork Length 48 in, Fork Width 6 1/4 in, Width Across Forks 27 in, Width Between Forks 14 1/2 in, Overall Length 67 in, Overall Width 27 in, Overall Height 48 in, Frame Material Steel, Minimum Lifting Height 3 in, Maximum Lifting Height 7 1/2 in, Fork LxW 48 in x 6 1/4 in, Overall LxWxH 67 in x 27 in x 48 in
