Shop DAYTON

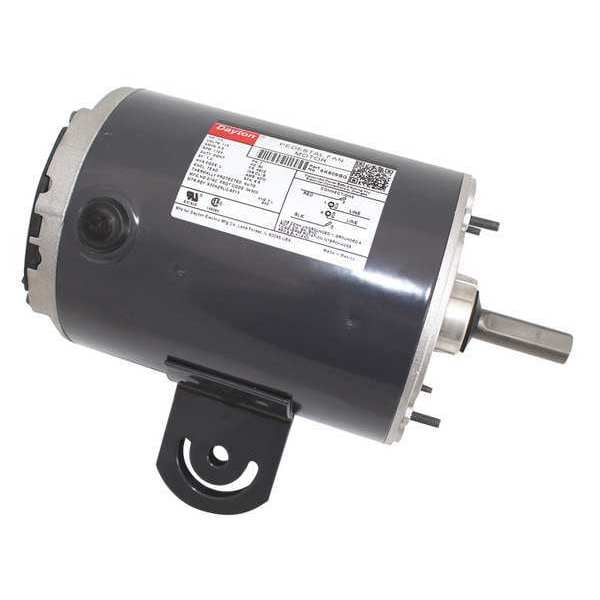

Pedestal Fan Motor, 1/2 hp

  • Mfr # 6K809BG

  • Zoro # G1514861

product price:
$
278.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/2
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6K809BG
Zoro #
G1514861
UPC #
190735366479
Country of Origin
Multiple
Item
Pedestal Fan Motor
Motor Design
Split-Phase
Phase
Single
HP
1/2
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Not Required
Max. Ambient Temp.
40 Degrees C
Application
Pedestal Fans
10 Ft. Cord and Pull Chain Switch
No
Motor Sub Application
Pedestal Fan
Motor Bearings
Ball
Motor Service Factor
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Application
HVAC/R
Motor Mounting Type
Yoke
Nameplate RPM
1,725
Ambient Temperature
40 Degrees C
Includes
Shaft Slinger
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Duty
Continuous
Full Load Amps
6.6 A
Motor Shaft Design
Flat
Ins. Class
B
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Sub Application
Pedestal Fan
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
1
Drive Type
Direct Drive
Product Type
Pedestal Fan Motor
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B
Full Load Current @ 60 Hz
6.6 A
Frequency
60 Hz

Description

Pedestal Fan Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 6.6 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 in, Shaft Dia. 5/8 in
