Shop DAYTON

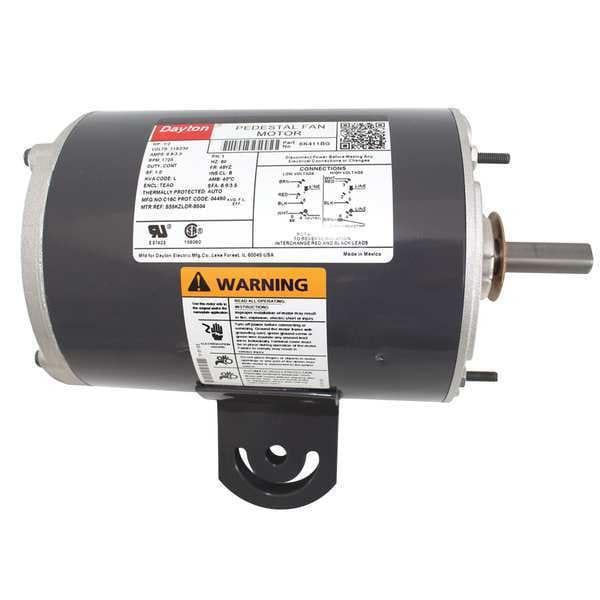

Pedestal Fan Motor, 1/2 hp

  • Mfr # 6K411

  • Zoro # G2397787

product price:  $245.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/2
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K411
Zoro #
G2397787
UPC #
190735365922
Country of Origin
Multiple

Dimensions

Shaft Length
2 in
Overall Length
10 1/4 in
Shaft Dia.
5/8 in
Body Dia.
5 5/8 in
Body Diameter
5.6 in
Frame Size
48YZ
Shaft Diameter
5/8 in

Details

Item
Pedestal Fan Motor
Motor Design
Split-Phase
Phase
Single
HP
1/2
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115/230V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Max. Ambient Temp.
40 Degrees C
Application
Pedestal Fans
10 Ft. Cord and Pull Chain Switch
No
Motor Mounting Type
Yoke
Motor Thermal Protection
Auto
Motor Sub Application
Pedestal Fan
Motor Service Factor
1
Ambient Temperature
40 Degrees C
Includes
Shaft Slinger
Motor Application
HVAC/R
Motor Shaft Design
Flat
Duty
Continuous
Ins. Class
B
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Motor Bearings
Ball
Capacitor Required
Capacitor Not Required
Nameplate RPM
1,725
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Full Load Amps
6.9/3.5 A
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Frequency
60 Hz
Product Type
Pedestal Fan Motor
Full Load Current @ 60 Hz
6.9/3.5 A
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B
Number of Speeds
1
Sub Application
Pedestal Fan
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1

Description

Pedestal Fan Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, 6.9/3.5 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 in, Shaft Dia. 5/8 in
