Shop DAYTON

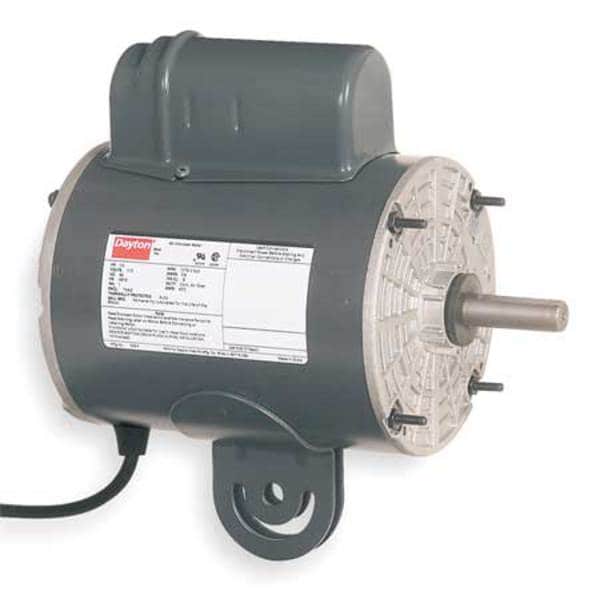

Pedestal Fan Motor, 1/3 hp

  • Mfr # 4UX64

  • Zoro # G1916941

product price:
$
337.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4UX64
Zoro #
G1916941
UPC #
190735335598
Country of Origin
Multiple

Dimensions

Shaft Length
2 1/2 in
Body Dia.
5 5/8 in
Overall Length
9 7/8 in
Shaft Dia.
1/2 in
Frame Size
48YZ
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Wire Rope Length
9 7/8 in
Length
9 7/8 in

Details

Item
Pedestal Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
0-1,000
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Hz
60 Hz
Motor Thermal Protection
Auto
Full Load Amps
4.8 A
Capacitor Required
Capacitor Included
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Application
Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
Motor Mounting Type
Yoke
10 Ft. Cord and Pull Chain Switch
Yes
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Motor Sub Application
Pedestal Fan
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Motor Shaft Design
Flat
Motor Application
HVAC/R
Nameplate RPM
825
Ambient Temperature
40 Degrees C
Duty
Continuous
Motor Service Factor
1
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Drive Type
Direct Drive
Bearing Type
Ball
Full Load Current @ 60 Hz
4.8 A
Product Type
Pedestal Fan Motor
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Sub Application
Pedestal Fan

Description

Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 825, No. of Speeds 1, Voltage 115V AC, 4.8 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 1/2 in, Shaft Dia. 1/2 in

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
