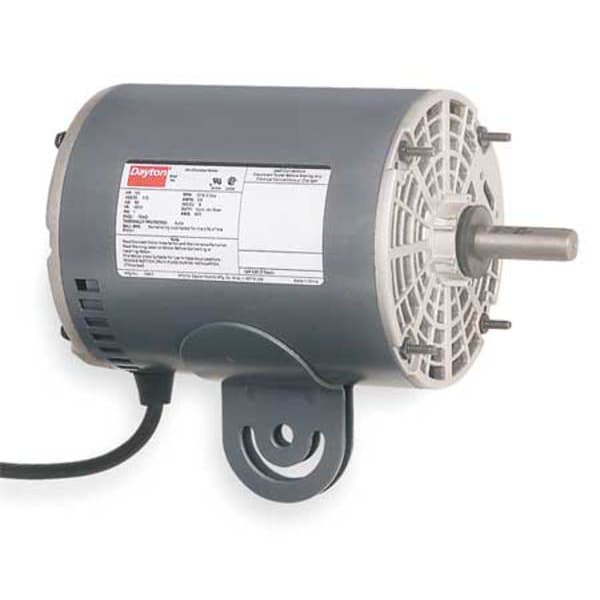

Pedestal Fan Motor, 1/4 hp

  • Mfr # 4UX66
  • Zoro # G2835357
product price:
$
377.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Phase
Single
HP
1/4
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4UX66
Zoro #
G2835357
UPC #
190735335611
Country of Origin
Multiple

Dimensions

Shaft Dia.
5/8 in
Overall Length
10 in
Body Dia.
5 5/8 in
Shaft Length
2 in
Body Diameter
5.6 in
Frame Size
48YZ
Shaft Diameter
5/8 in
Wire Rope Length
10 in
Length
10 in

Details

Item
Pedestal Fan Motor
Motor Design
Split-Phase
Phase
Single
HP
1/4
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CWSE
Frame
48YZ
Motor Enclosure Design
Open Air-Over
Ambient Temperature
40 Degrees C
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Full Load Amps
4.9 A
Motor Sub Application
Pedestal Fan
10 Ft. Cord and Pull Chain Switch
Yes
Standards
CSA Certified, UL Recognized
Motor Thermal Protection
Auto
Ins. Class
B
Motor Mounting Type
Yoke
Nameplate RPM
1,725
Hz
60 Hz
Duty
Continuous
Motor Bearings
Ball
Motor Application
HVAC/R
Capacitor Required
Capacitor Not Required
Motor Shaft Design
Flat
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Insulation Class
B
Frequency
60 Hz
Bearing Type
Ball
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Product Type
Pedestal Fan Motor
Sub Application
Pedestal Fan
Number of Speeds
1
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
4.9 A

Description

Pedestal Fan Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.9 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 in, Shaft Dia. 5/8 in
