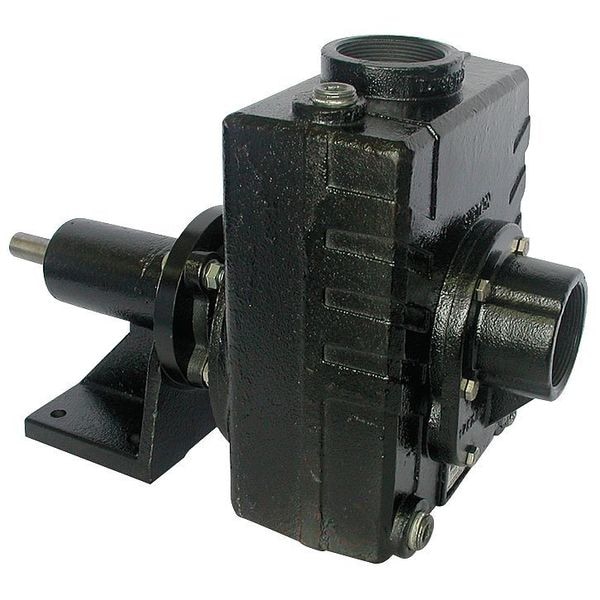

Pedestal Pump, Cast Iron, 3 HP
Mfr # 5PXX8
Zoro # G2254375
product price:Â $814.99
/ea
Free Shipping & Returns
Key Features
HP Required
3 hp
Inlet
2 in
Outlet
2 in
Wetted Materials
Cast Iron, Carbon/Ceramic, Buna N, Stainless Steel, Carbon Steel
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5PXX8
- Zoro #
- G2254375
- UPC #
- 190735350263
- Country of Origin
- China
Dimensions
- Height
- 11 3/16 in
- Manufacturers Warranty Length
- 1 yr
- Length
- 15 3/4 in
- Width
- 7 5/8 in
- Max. Dia. Solids
- 3/8
- Overall Width
- 7.63 in
- Overall Length
- 15.75 in
- Overall Height
- 11.19 in
- Compatible Intake Pipe Size
- 2 in
- Manufacturer Warranty Length
- 1 yr
- Sized for Horsepower
- 3 hp
- Solid Diameter (Maximum)
- 0.38 in
- Compatible Discharge Pipe Size
- 2 in
- Shaft Outside Diameter
- 3/4 in
- Discharge Diameter
- 2 in
- For Motor Frame Size
- 182T, 184T
- Inlet Diameter
- 2 in
- Impeller Diameter
- 126 mm
- Wire Rope Length
- 15.75 in
Description
Pedestal Pump, Pump Housing Material Cast Iron, Sized for Horsepower 3 hp, Flow Rate @ 10 ft of Head (Maximum) 82 gpm, Flow Rate @ 20 ft of Head (Maximum) 71 gpm, Flow Rate @ 30 ft of Head (Maximum) 60 gpm, Flow Rate @ 40 ft of Head (Maximum) 55 gpm, Maximum Feet of Head 73 ft, Intake Type NPT, Compatible Intake Pipe Size 2 in, Compatible Discharge Pipe Size 2 in, Suction Lift (Maximum) 25 ft, Shaft Outside Diameter 3/4 in, Priming Self-Priming, NPSHr Not Applicable, Best Efficiency Flow 60 gpm
