Shop DAYTON

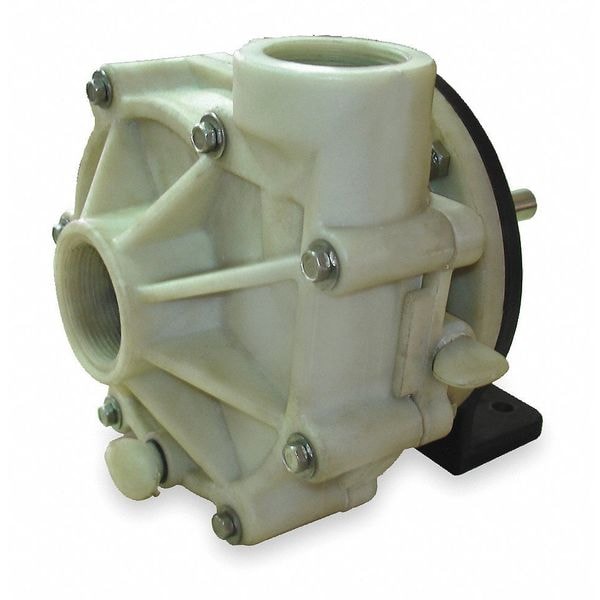

Pedestal Pump, HP Req 3/4, Polypropylene

  • Mfr # 2YEU8
  • Zoro # G2234321
product price:
$
480.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polypropylene
HP Required
3/4 hp
Inlet (In.)
1 1/2 in
Inlet
1 1/2 in
Best Efficiency GPM @ Head
23 @ 41 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2YEU8
Zoro #
G2234321
UPC #
190735238561
Country of Origin
India

Dimensions

Width
7 5/8 in
Length
9 1/3 in
Manufacturers Warranty Length
1 yr
Height
7 1/2 in
Overall Width
7.6 in
Overall Height
7.5 in
Overall Length
9.33 in
Discharge Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.17 in
Shaft Outer Diameter
5/8 in
Intake Pipe Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Discharge Diameter
1 1/2 in
Inlet Diameter
1 1/2 in
Shaft Outside Diameter
5/8 in
For Motor Frame Size
56C, 56J
Sized for Horsepower
3/4 hp
Impeller Diameter
122 mm

Details

Item
Pedestal Pump
Housing Material
Polypropylene
HP Required
3/4 hp
Inlet (In.)
1 1/2 in
Inlet
1 1/2 in
Best Efficiency GPM @ Head
23 @ 41 ft
Outlet
1 1/2 in
Bearing Type
Ball
GPM of Water @ 40 Ft. of Head
24
GPM of Water @ 50 Ft. of Head
18
GPM of Water @ 30 Ft. of Head
29
Impeller Material
Polypropylene
GPM of Water @ 60 Ft. of Head
10
Duty
Continuous
Max. Specific Gravity
1.0
Max. Case Pressure
100 psi
Includes
Manual
Wetted Materials
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
GPM of Water @ 10 Ft. of Head
37
GPM of Water @ 70 Ft. of Head
2
Impeller Type
Closed
GPM of Water @ 20 Ft. of Head
33
For Use With
Nonflammable and Non-abrasive liquid
Inlet Pressure
75 psi
Port Rotation
4 Position Increments
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Volute Material
Polypropylene
Shaft Material
Stainless Steel
Flow Rate @ 30 ft of Head (Maximum)
29 gpm
Flow Rate @ 20 ft of Head (Maximum)
33 gpm
Feet of Head (Maximum)
72 ft
Impeller Design
Closed
Flow Rate @ 10 ft of Head (Maximum)
37 gpm
Duty Cycle
Continuous
Discharge Rotation
360 Degrees at 90 Degrees Increments
Discharge Pipe Type
NPT
Motor Speed (Maximum)
3,450 RPM
Case Pressure (Maximum)
100 psi
Flow Rate @ 70 ft of Head (Maximum)
2 gpm
Priming
Manual
Flow Rate @ 60 ft of Head (Maximum)
10 gpm
Best Efficiency Flow
23 gpm
For Use With Potable Systems
No
Viscosity (Maximum)
100 SUS
Specific Gravity (Maximum)
1
Flow Rate @ 40 ft of Head (Maximum)
24 gpm
Intake Pipe Type
NPT
Flow Rate @ 50 ft of Head (Maximum)
18 gpm
Wetted Material
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
Horsepower (Maximum)
3/4 hp
Best Efficiency Head
41 ft
Product Type
Pedestal Pump
Media Temperature - Maximum
140 Degrees F
Pump Shaft Rotation Direction
CW
Pump Housing Material
Polypropylene
Number of Stages
1
Chemical Compatibility
Non-Abrasive Liquids, Non-Flammable Liquids
Pump Drive Configuration
Bare Shaft
Shaft Seal Type
Mechanical
Shaft Seal Material
Buna-N/Carbon/Ceramic/Stainless Steel
Media Temperature - Minimum
40 Degrees F
Pumping Application
Boiler Feed, Booster Services, Chemical Transfer, Condensate Return, Cooling and Heat Transfer, Filtration, Decorative Water, Irrigation, Jockey Pump Services, Spraying Systems, Liquid Transfer, Water Circulation
Flow Rate @ 15 ft of Head (Maximum)
35 gpm
Ambient Temperature - Maximum
140 Degrees F
Feet of Head (Minimum)
10 ft
Flow Rate (Minimum)
2 gpm
Discharge Rotation Increments
0 Degrees
Shut Off Pressure - Maximum
31.1 psi
Flow Rate (Maximum)
37 gpm
Case Pressure - Maximum
100 psi
Flow Rate @ 90 ft of Head (Maximum)
0 gpm
Flow Rate @ 100 ft of Head (Maximum)
0 gpm

Description

Pedestal Pump, Pump Housing Material Polypropylene, Sized for Horsepower 3/4 hp, Flow Rate @ 10 ft of Head (Maximum) 37 gpm, Flow Rate @ 20 ft of Head (Maximum) 33 gpm, Flow Rate @ 30 ft of Head (Maximum) 29 gpm, Flow Rate @ 40 ft of Head (Maximum) 24 gpm, Suction Lift (Maximum) Not Applicable, Shaft Outside Diameter 5/8 in, Priming Manual, Best Efficiency Flow 23 gpm, Best Efficiency Head 41 ft, Compatible Motor Frame Not Applicable, Discharge Rotation 360 Degrees at 90 Degrees Increments
