Shop JABSCO

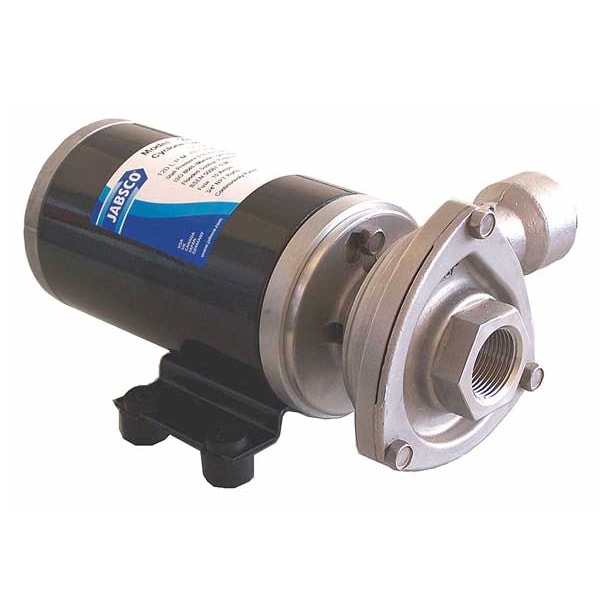

Stainless Steel 5/32 HP Centrifugal Pump 12V

  • Mfr # 50860-0012

  • Zoro # G1134777

product price:  $616.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
5/32 hp
Voltage - Pumps
12V DC
Housing Material - Pumps
Stainless Steel
Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50860-0012
Zoro #
G1134777
UPC #
042237109958
Country of Origin
China

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Height
5 in
Inlet/Outlet Size
3/4"
Width
6 1/2 in
Manufacturers Warranty Length
1 yr
Length
9 in
Overall Length
8.2 in
Overall Height
4.4 in
Overall Width
4 in
Compatible Discharge Pipe Size
3/4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
3/4 in
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in
Wire Rope Length
8.2 in

Details

HP - Pumps
5/32 hp
Voltage - Pumps
12V DC
Housing Material - Pumps
Stainless Steel
Max. Pressure - Pumps
17 psi
Max. Head
18 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Amps
21.0
GPH of Water @ 5 Ft. of Head
17
Agency Compliance
ISO 8846 Marine & USCG Regs.
Max. Pressure
17.4 psi
Outlet
3/4" FNPT
Voltage
12V
Impeller Type
Anti Clog
Item
Centrifugal Pump
Housing Material
Stainless steel
Best Efficiency GPM @ Head
10.6 gpm @ 10 ft
Connection Style
NPT
HP
5/32
Max. Liquid Temp.
210 Degrees F
Min. GPM @ Head
5.3 @ 15 ft
Pump Type
High Pressure Centrifugal Pump
Max. GPM @ Head
20 @ 2.9 ft
Duty
Intermittent
Motor Enclosure
Totally Enclosed Fan Cooled
Seal Material
Carbon
Impeller Material
Stainless Steel
Motor Type
Brushed
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Inlet
3/4" FNPT
Features
Silent Suction Lift, Various Discharge Port Configurations Available, Vibration Free Running
Standards
CE Certified, ISO 8846
Motor Ambient Temperature (Maximum)
203 Degrees F
Maximum Flow Rate
21 gpm
Flow Rate @ 15 ft of Head (Maximum)
5.3 gpm
Maximum RPM
2,500 RPM
Best Efficiency Head
10 ft
Suction Lift (Maximum)
6.5 ft
Discharge Type
NPT
Minimum Media Temperature
39 Degrees F
Flow Rate @ 5 ft of Head (Maximum)
17 gpm
Motor Ambient Temperature (Minimum)
39 Degrees F
Flow Rate @ 10 ft of Head (Maximum)
10.6 gpm
Duty Cycle
Intermittent
Seal Type
Mechanical
Intake Type
NPT
Shut Off Pressure (Maximum)
17 psi
For Use With Potable Systems
No
Shaft Material
Stainless Steel
Horsepower
5/32 hp
Pump Housing Material
Stainless Steel
Maximum Feet of Head
18 ft
Nameplate Voltage
12V DC
Series
50860
Impeller Design
Anti-Clog
Best Efficiency Flow
10.6 gpm
Volute Material
Stainless Steel
Shaft Seal Material
Carbon
Flow Rate (Maximum)
21 gpm
Shaft Seal Type
Mechanical
Motor Speed - Maximum
2,500 RPM
Suction Lift - Maximum
6.5 ft
Ambient Temperature - Maximum
203 Degrees F
Feet of Head (Maximum)
18 ft
Flow Rate @ 10 ft of Head - Maximum
10.6 gpm
Shut Off Pressure - Maximum
17 psi
Media Temperature - Minimum
39 Degrees F

Description

Centrifugal Pump, Phase -, Pump Housing Material Stainless Steel, Horsepower 5/32 hp, Nameplate Voltage 12V DC, Flow Rate @ 40 ft of Head (Maximum) Not Applicable, Flow Rate @ 60 ft of Head (Maximum) Not Applicable, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Maximum Feet of Head 18 ft, Compatible Intake Pipe Size 3/4 in, Intake Type NPT, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 21 gpm
