  11. Pneumatic Turbine Vibrator, Force 1718 Lb

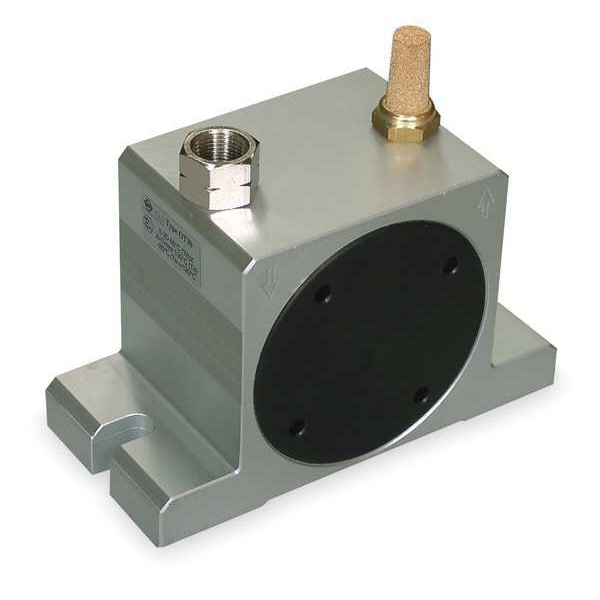

Dayton Pneumatic Turbine Vibrator, Force 1718 Lb 1DYP9 - main

Pneumatic Turbine Vibrator, Force 1718 Lb

  • Mfr # 1DYP9

  • Zoro # G0246294

product price: $359.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
1718 lb
CFM @ 80 PSI
26.5
Speed @ 60 psi
12,500 VPM
Overall Length
6-1/4"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP9
Zoro #
G0246294
UPC #
190735137277
Country of Origin
Italy

Dimensions

Overall Length
6-1/4"
Overall Width
2-7/8"
Overall Height
4"
Mount Hole Size
0.4
Outlet Connection Size
3/8 in
Inlet Connection Size
3/8 in

Details

Vibrator Type
Turbine
Item
Pneumatic Vibrator
Force Rating
1718 lb
CFM @ 80 PSI
26.5
Speed @ 60 psi
12,500 VPM
Speed @ 80 psi
14,500 VPM
dB @ 80 psi
67
Bin Weight Capacity
17,180 lb
Inlet Port
3/8" NPT
Outlet Port
3/8" BSPP
Mounting
Any Position
Duty
Continuous
Housing Material
Aluminum
Mounting Plate
No
Max. Temp.
250 Degrees F
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Max. Pressure
90 psi
Muffler
Included
Force @ 60 psi
1,586 lbf
Air Flow Rate
11.4 cfm @ 30 psi, 19.1 cfm @ 60 psi, 26.5 cfm @ 87 psi
Mounting Orientation
Any Position
Pneumatic Vibrator Type
Turbine
Maximum Bin Weight Capacity
17,180 lb
Mount Type
Any Position
Duty Cycle
Continuous
Maximum Operating Temperature
248 Degrees F
Vibration Speed @ 60 psi
12,500 vpm
Maximum Inlet Pressure
90 psi
Sound Level
67 dBA
Maximum Force
1,718 lbf
Mount Plate Required
No
Vibration Speeds @ PSI
12,500 vpm @ 60 psi, 14,500 vpm @ 80 psi
Force @ PSI
1,586 lbf @ 60 psi, 1,718 lbf @ 87 psi, 771 lbf @ 30 psi
Maximum Vibration Speed
14,500 vpm
Vibration Speed @ 80 psi
14,500 vpm
Minimum Operating Temperature
-4 Degrees F
Inlet Connection Type
NPT
Mount Plate Included
No
Outlet Connection Type
BSPP

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 3/8 in, Outlet Connection Type BSPP, Air Flow Rate 11.4 cfm @ 30 psi, 19.1 cfm @ 60 psi, 26.5 cfm @ 87 psi, Maximum Force 1,718 lbf, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 14,500 vpm, Maximum Bin Weight Capacity 17,180 lb, Overall Height 3.94 in, Overall Length 6.3 in, Overall Width 2.87 in, Sound Level 67 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
