  5. Pressure Washer Pump, 2.5 GPM, 1/2F x 3/8F

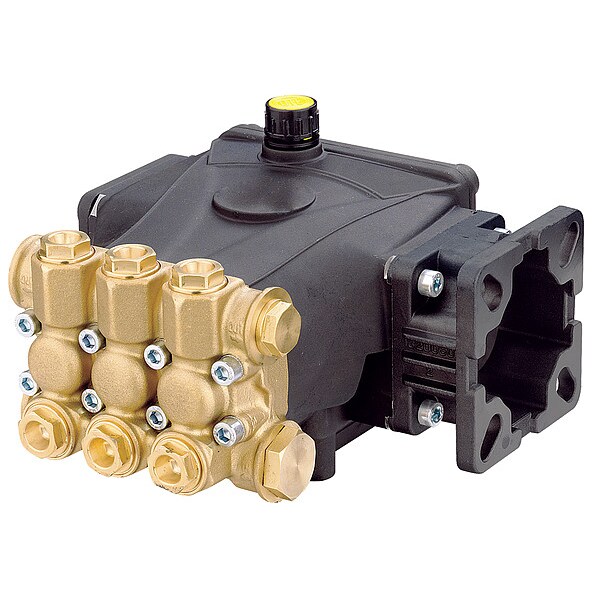

Dayton Pressure Washer Pump, 2.5 GPM, 1/2F x 3/8F 4WXV9 - main

Pressure Washer Pump, 2.5 GPM, 1/2F x 3/8F

  • Mfr # 4WXV9

  • Zoro # G2815267

product price:  $571.99
/ea
Free Shipping & Returns

Key Features

Type
Direct-Mount
Flow Capacity (GPM)
2.5 gpm
RPM
3,400 RPM
Shaft Dia.
3/4 in
Inlet Port (In.)
1/2 F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4WXV9
Zoro #
G2815267
UPC #
190735336991
Country of Origin
China

Dimensions

Shaft Dia.
3/4 in
Width (In.)
7.5 in
Height (In.)
4.9 in
Length (In.)
7.2 in
Overall Width
7.5 in
Intake Connection Size
1/2 in
Overall Height
4.9 in
Discharge Connection Size
3/8 in
Shaft Outer Diameter
3/4 in
Manufacturers Warranty Length
5 yr
Overall Length
7.2 in

Details

Item
Pressure Plunger Pump
Type
Direct-Mount
Flow Capacity (GPM)
2.5 gpm
RPM
3,400 RPM
Inlet Port (In.)
1/2 F
Discharge Pressure (PSI)
2,700 psi
Manifold Material
Forged Brass
Max. Inlet Pressure (PSI)
50 psi
Connecting Rod
Aluminum
Plunger
Ceramic
HP Required @ 1000 PSI
2.2 hp
HP Required @ 2000 PSI
4.4 hp
Max. Fluid Temp. (F)
140
Application
High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting
Crankshaft
Hardened Steel
Seal
Buna N Chevron and Lip Seal Packing, Cotton Duct
HP Required @ 2500 PSI
5.6 hp
Driver Type
Gasoline Engine
Pump Head
Forged Brass
Lubrication
Oil Bath
Crankcase
Precision Die Cast
Discharge Port (In.)
3/8 Degrees F
Bearings
Needle/Ball
HP Required @ 1500 PSI
3.3 hp
HP Required @ 500 PSI
1.1 hp
Flange Type
Horizontal Gas Engine
Shaft Type
Hollow
Discharge Pressure (Maximum)
2,700 psi
Drive Type
Direct-Mount
Crankshaft Material
Hardened Steel
Pump Head Material
Forged Brass
Series Family
RCV
Discharge Connection Type
BSP
Required Gasoline Engine Horsepower (Maximum)
5 hp
Connecting Rod Material
Aluminum
Intake Connection Type
BSP
Plunger Material
Ceramic
Seal Material
Buna-N
Crankcase Material
Die Cast Aluminum
Media Temperature (Maximum)
140 Degrees F
Wetted Material
Brass
Flow Rate (Maximum)
2.5 gpm
Motor Speed (Maximum)
3,400 RPM
Number of Pistons
3
Seal Type
Chevron, Cotton Duct, Lip
Bearing Type
Ball, Needle Roller
Operating Pressure (Maximum)
2,700 psi
Piston Design
Triplex

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type BSP, Discharge Pressure (Maximum) 2,700 psi, Flow Rate (Maximum) 2.5 gpm, Intake Connection Size 1/2 in, Intake Connection Type BSP, Motor Speed (Maximum) 3,400 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) Not Applicable, Required Gasoline Engine Horsepower (Maximum) 5 hp, Lubrication Oil Bath, Shaft Outer Diameter 3/4 in
