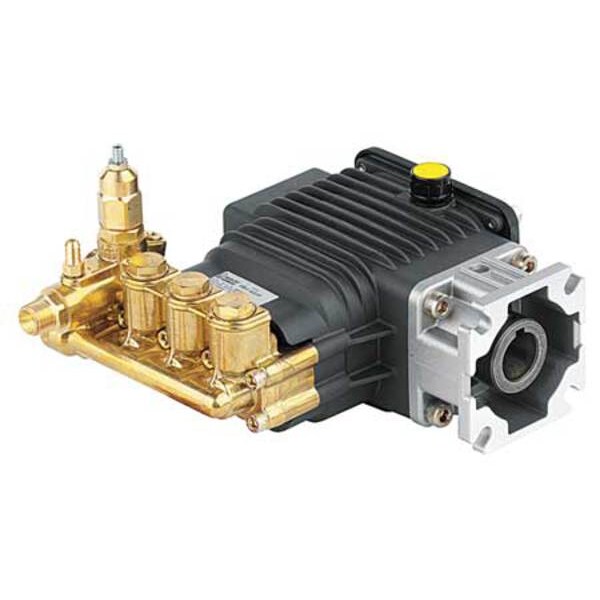

Pressure Washer Pump, 3 GPM, 3/8F x 3/8F

  • Mfr # 4WXX7

  • Zoro # G1364842


product price: $696.99
/ea
Free Shipping & Returns

Key Features

Type
Direct-Mount
Flow Capacity (GPM)
3 gpm
RPM
3,400 RPM
Shaft Dia.
3/4 in
Inlet Port (In.)
3/8 F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4WXX7
Zoro #
G1364842
UPC #
190735337127
Country of Origin
China

Dimensions

Shaft Dia.
3/4 in
Length (In.)
9.7 in
Height (In.)
5.7 in
Width (In.)
6.7 in
Overall Height
5.7 in
Overall Length
9.7 in
Shaft Outer Diameter
3/4 in
Discharge Connection Size
3/8 in
Intake Connection Size
3/8 in
Manufacturers Warranty Length
5 yr
Overall Width
6.7 in

Details

Item
Pressure Plunger Pump
Type
Direct-Mount
Flow Capacity (GPM)
3 gpm
RPM
3,400 RPM
Inlet Port (In.)
3/8 F
Plunger
Ceramic
Driver Type
Gasoline Engine
Crankshaft
Hardened Steel
Discharge Port (In.)
3/8 Degrees F
Seal
Buna N Chevron and Lip Seal Packing, Cotton Duct
HP Required @ 1000 PSI
2.1 hp
HP Required @ 2000 PSI
4.1 hp
Manifold Material
Forged Brass
HP Required @ 2500 PSI
5.1 hp
HP Required @ 3000 PSI
6.2 hp
Max. Inlet Pressure (PSI)
50 psi
Max. Fluid Temp. (F)
140
HP Required @ 1500 PSI
3.1 hp
Connecting Rod
Aluminum
HP Required @ 500 PSI
1 hp
Lubrication
Oil Bath
Application
High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting
Bearings
Needle/Ball
Discharge Pressure (PSI)
3,000 psi
Crankcase
Precision Die Cast
Pump Head
Forged Brass
Shaft Type
Hollow
Flow Rate (Maximum)
3 gpm
Required Gasoline Engine Horsepower (Maximum)
7 hp
Flange Type
Horizontal Gas Engine
Discharge Pressure (Maximum)
3,000 psi
Number of Pistons
3
Crankcase Material
Die Cast Aluminum
Wetted Material
Brass
Seal Type
Chevron, Cotton Duct, Lip
Drive Type
Direct-Mount
Connecting Rod Material
Aluminum
Pump Head Material
Forged Brass
Crankshaft Material
Hardened Steel
Series Family
RSV
Plunger Material
Ceramic
Discharge Connection Type
BSP
Piston Design
Triplex
Operating Pressure (Maximum)
3,000 psi
Intake Connection Type
BSP
Bearing Type
Ball, Needle Roller
Seal Material
Buna-N
Media Temperature (Maximum)
140 Degrees F
Motor Speed (Maximum)
3,400 RPM

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type BSP, Discharge Pressure (Maximum) 3,000 psi, Flow Rate (Maximum) 3 gpm, Intake Connection Size 3/8 in, Intake Connection Type BSP, Motor Speed (Maximum) 3,400 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) Not Applicable, Required Gasoline Engine Horsepower (Maximum) 7 hp, Lubrication Oil Bath, Shaft Outer Diameter 3/4 in
