  9. Pump, 1 HP, 115/230V, 13.0/6.5 Amp

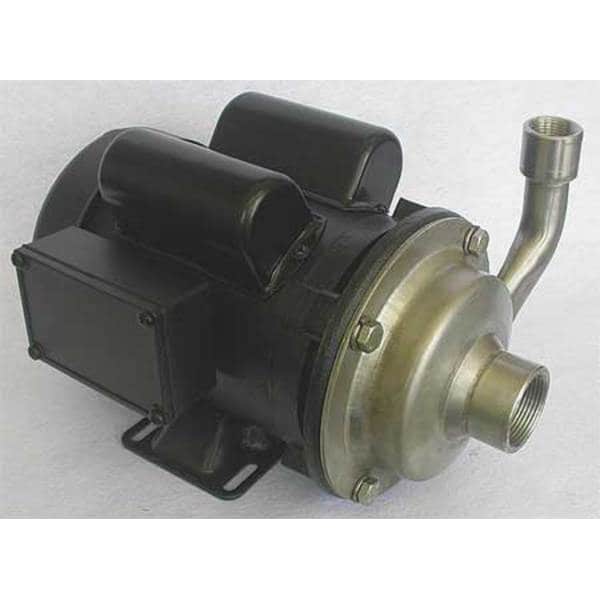

Dayton Pump, 1 HP, 115/230V, 13.0/6.5 Amp 4JMX2 - main

Pump, 1 HP, 115/230V, 13.0/6.5 Amp

  • Mfr # 4JMX2

  • Zoro # G0547032

product price: $948.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Housing Material
304 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
90 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JMX2
Zoro #
G0547032
UPC #
190735326756
Country of Origin
China

Dimensions

Max. Dia. Solids
1/8 in
Height
7 7/8 in
Length
12 15/16 in
Width
9 1/4 in
Manufacturers Warranty Length
1 yr
Overall Length
12.9 in
Overall Width
9.3 in
Overall Height
7.9 in
Shaft Outer Diameter
7/16 in
Solid Diameter (Maximum)
0.13 in
Intake Pipe Size
1 1/2 in
Discharge Pipe Size
1 1/4 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
1 hp
Housing Material
304 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
90 gpm @ 5 ft
Max. Head
65 ft
Inlet
1-1/2 in NPT
Best Efficiency GPM @ Head
48 gpm @ 40 ft
Outlet
1-1/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Max. Specific Gravity
1.0
Service Factor
1.3
Hz
60
Impeller Type
Closed
Port Rotation
90 Degrees Increments
NEMA/IEC Frame
56J
Amps
13.0/6.5
Screw Material
Stainless Steel
GPM of Water @ 40 Ft. of Head
48
Max. Case Pressure
150 psi
Agency Compliance
CUS
Motor Type
Permanent Split Capacitor
GPM of Water @ 30 Ft. of Head
57
Drain Plug
No
GPM of Water @ 15 Ft. of Head
79
Wetted Materials
304 Stainless Steel, Carbon, Ceramic, Viton
Best Efficiency Range GPM @ Head
21 to 66 gpm @ 50 to 20 ft
GPM of Water @ 5 Ft. of Head
90
GPM of Water @ 25 Ft. of Head
70
Impeller Material
304 Stainless Steel
Seal Type
Mechanical
Shaft Material
Stainless Steel
Max. Fluid Viscosity
31 SUS
Max. Liquid Temp.
200 Degrees F
Duty
Continuous
Bearing Type
Ball
GPM of Water @ 20 Ft. of Head
77
Motor RPM
3,450 RPM
Inlet Pressure
121 psi
GPM of Water @ 50 Ft. of Head
24
GPM of Water @ 10 Ft. of Head
84
GPM of Water @ 60 Ft. of Head
8
Min. GPM @ Head
8 gpm @ 60 ft
Includes
Manual
Application
Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Volute Material
304 Stainless Steel
Standards
CUS
Flow Rate @ 10 ft of Head (Maximum)
75 gpm
Priming
Manual
Wetted Material
304 Stainless Steel, Carbon, Ceramic, Viton
Flow Rate @ 25 ft of Head (Maximum)
56 gpm
Flow Rate (Maximum)
90 gpm
Ambient Temperature (Maximum)
104 Degrees F
Viscosity (Maximum)
31 SUS
Feet of Head (Maximum)
65 ft
Impeller Design
Closed
Flow Rate @ 15 ft of Head (Maximum)
70 gpm
Intake Pipe Type
NPT
Flow Rate @ 30 ft of Head (Maximum)
48 gpm
Best Efficiency Flow
48 gpm
Best Efficiency Head
40 ft
Current
13 or 6.5 A
Horsepower (Maximum)
1 hp
Flow Rate @ 20 ft of Head (Maximum)
65 gpm
Case Pressure (Maximum)
150 psi
Specific Gravity (Maximum)
1
Shut Off Pressure (Maximum)
150 psi
For Use With Potable Systems
No
Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 1 ft of Head (Maximum)
82 gpm
Frequency
60 Hz
Media Temperature (Maximum)
200 Degrees F
Flow Rate @ 5 ft of Head (Maximum)
79 gpm
Discharge Rotation
90 Degrees Increments
Motor Speed (Maximum)
3,450 RPM
Media Temperature (Minimum)
40 Degrees F
Compatible Motor Frame
56J NEMA
Flow Rate @ 40 ft of Head (Maximum)
26 gpm
Nameplate Voltage
115/230V AC
Discharge Pipe Type
NPT
Duty Cycle
Continuous
Flow Rate (Minimum)
8 gpm
Flow Rate @ 60 ft of Head (Maximum)
3 gpm

Description

Centrifugal Pump, Discharge Pipe Size 1 1/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 65 ft, Flow Rate (Maximum) 90 gpm, Horsepower (Maximum) 1 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 75 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
