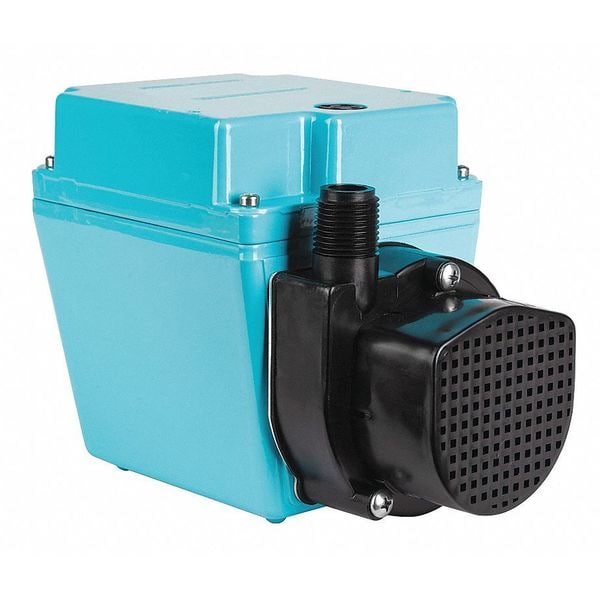

Little Giant Pump Pump, 7 In. L, 4-1/2 In. W, 5-1/2 In. H 504203 - main

Pump, 7 In. L, 4-1/2 In. W, 5-1/2 In. H

  • Mfr # 504203

  • Zoro # G1877181

product price:  $297.99
/ea
Free Shipping & Returns

Key Features

HP
1/12 hp
Voltage
115V
Full Load Amps
3.5 A
Cord Length
6 ft
Impeller Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
504203
Zoro #
G1877181
UPC #
010121049024
Country of Origin
Mexico

Dimensions

Cord Length
6 ft
Length
7 in
Height
5 1/2 in
Width
4 1/2 in
Overall Height
5.5 in
Overall Width
4.5 in
Overall Length
7 in
Compatible Intake Pipe Size
3/4 in
Compatible Discharge Pipe Size
1/2 in

Details

Item
Centrifugal Pump
HP
1/12 hp
Voltage
115V
Full Load Amps
3.5 A
Impeller Material
Nylon
Duty
Continuous
Max. Head
24.5 ft
Seal Material
Fluoroelastomer
Inlet
3/4 in (F)NPT
GPH of Water @ 20 Ft. of Head
173
Overload Protection
yes
Outlet
1/2 in (M)NPT
Housing Material
Nylon
GPH of Water @ 10 Ft. of Head
613
Hz
60
GPH of Water @ 5 Ft. of Head
745
Inlet Type
3/4 in (F)NPT
GPH of Water @ 1 Ft. of Head
810
Features
Screened Inlet
Agency Compliance
UL
Amps
3.5 A
Standards
cCSAus Listed
Nameplate Voltage
115V AC
Duty Cycle
Continuous
Flow Rate @ 10 ft of Head (Maximum)
613 gph
Maximum Media Temperature
120 Degrees F
Motor Sealing
Oil-Filled
Flow Rate @ 1 ft of Head (Maximum)
810 gph
Series
4E-34NR
Pump Housing Material
Cast Aluminum
Feet of Head (Minimum)
1 ft
Pumping Application
Air Conditioners, Machine Tool Coolants, Mild Acids, Recirculation, Submersible, Water Displays, Water Transfer
Frequency
60 Hz
Discharge Type
NPT
Seal Type
Mechanical
Intake Type
NPT
Flow Rate @ 15 ft of Head (Maximum)
400 gph
Thermal Overload Protection
Yes
Compatible with Media Type
Oil
Horsepower
1/12 hp
Minimum Flow Rate
0 gph
Flow Rate @ 5 ft of Head (Maximum)
745 gph
Maximum Flow Rate
810 gph
Maximum Feet of Head
24 ft

Description

The LITTLE GIANT PUMP 504203 is a compact submersible centrifugal pump for transferring or recirculating liquid in applications such as statuary fountains, water displays, air conditioners, and machine tool coolants. It has an oil-filled 1/12 hp motor, an epoxy-coated cast aluminum pump housing, and is designed for submersible use only. The pump delivers up to 810 GPH, reaches a maximum head of 24.5 ft, and is rated for intermittent liquid temperatures up to 120°F.

Key Features:

  • Maximum flow rate: Up to 810 GPH at 1 ft of head.
  • Flow performance: 745 GPH at 5 ft, 613 GPH at 10 ft, 400 GPH at 15 ft, and 173 GPH at 20 ft of head.
  • Maximum head: 24.5 ft lift capacity.
  • Discharge connection: 1/2 in (M)NPT outlet for compatible discharge piping.
  • Inlet connection: 3/4 in (F)NPT inlet with screened inlet design.
  • Motor sealing: Oil-filled motor for submersible operation.
  • Overload protection: Thermal overload protection is included.
  • Electrical: 115V AC, 60 Hz, 3.5 A operation.
  • Construction: Epoxy-coated cast aluminum pump housing with nylon impeller.
  • Size: 7 in L x 4.5 in W x 5.5 in H with a 6 ft cord.
  • Duty: Continuous duty cycle.
  • Listings: UL and cCSAus Listed.
