  9. Pump, Centrifugal, SS, 1-1/2 HP, 1 PH

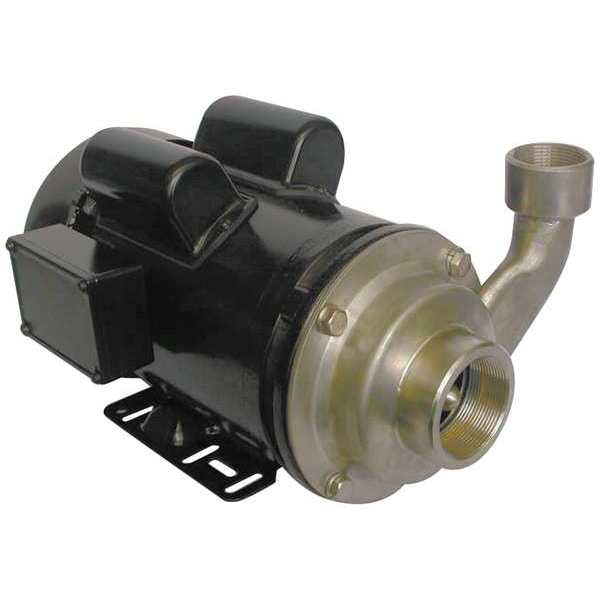

Dayton Pump, Centrifugal, SS, 1-1/2 HP, 1 PH 5WXT6 - main

Pump, Centrifugal, SS, 1-1/2 HP, 1 PH

  • Mfr # 5WXT6

  • Zoro # G0989737

product price: $1,319.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
116 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5WXT6
Zoro #
G0989737
UPC #
190735354889
Country of Origin
China

Dimensions

Width
9 1/4 in
Length
14 3/8 in
Max. Dia. Solids
1/8 in
Manufacturers Warranty Length
1 yr
Height
7 7/8 in
Overall Height
7.9 in
Overall Width
9.3 in
Overall Length
14.4 in
Intake Pipe Size
1 1/2 in
Discharge Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.13 in
Shaft Outer Diameter
7/16 in

Details

HP
1 1/2 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
116 gpm @ 5 ft
Max. Head
65 ft
Best Efficiency GPM @ Head
50 gpm @ 48 ft
Inlet
1-1/2 in NPT
Outlet
1-1/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Motor RPM
3,450 RPM
GPM of Water @ 30 Ft. of Head
81
Min. GPM @ Head
13 gpm @ 60 ft
Shaft Material
Stainless Steel
Max. Specific Gravity
1.0
GPM of Water @ 10 Ft. of Head
108
Includes
Manual
Drain Plug
No
GPM of Water @ 15 Ft. of Head
105
Impeller Type
Closed
Amps
15.0/7.5
GPM of Water @ 60 Ft. of Head
13
Max. Case Pressure
150 psi
Max. Fluid Viscosity
260 SUS
Bearing Type
Ball
NEMA/IEC Frame
56J
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Screw Material
Stainless Steel
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
Port Rotation
90 Degrees Increments
Max. Liquid Temp.
300 Degrees F
Seal Type
Mechanical
Service Factor
1.15
GPM of Water @ 5 Ft. of Head
116
GPM of Water @ 40 Ft. of Head
70
GPM of Water @ 20 Ft. of Head
100
GPM of Water @ 25 Ft. of Head
95
Impeller Material
316 Stainless Steel
Best Efficiency Range GPM @ Head
97 to 16 gpm @ 23 to 60 ft
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
Motor Type
Capacitor Start Capacitor Run
Duty
Continuous
Hz
60
Agency Compliance
CUS
GPM of Water @ 50 Ft. of Head
44
Inlet Pressure
121 psi
Volute Material
316 Stainless Steel
Standards
CUS
Flow Rate @ 15 ft of Head (Maximum)
98 gpm
Frequency
60 Hz
Specific Gravity (Maximum)
1
Viscosity (Maximum)
260 SUS
Flow Rate @ 10 ft of Head (Maximum)
100 gpm
Nameplate Voltage
115/230V AC
Flow Rate (Maximum)
116 gpm
Feet of Head (Maximum)
78 ft
Flow Rate @ 20 ft of Head (Maximum)
95 gpm
Shut Off Pressure (Maximum)
150 psi
Horsepower (Maximum)
1 1/2 hp
Flow Rate @ 40 ft of Head (Maximum)
60 gpm
Flow Rate (Minimum)
13 gpm
Flow Rate @ 30 ft of Head (Maximum)
76 gpm
Flow Rate @ 1 ft of Head (Maximum)
103 gpm
Discharge Rotation
90 Degrees Increments
Motor Speed (Maximum)
3,450 RPM
Current
15.0 or 7.5 A
Best Efficiency Flow
50 gpm
Intake Pipe Type
NPT
Flow Rate @ 60 ft of Head (Maximum)
13 gpm
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
Flow Rate @ 5 ft of Head (Maximum)
102 gpm
Discharge Pipe Type
NPT
Impeller Design
Closed
Ambient Temperature (Maximum)
104 Degrees F
For Use With Potable Systems
No
Media Temperature (Minimum)
40 Degrees F
Media Temperature (Maximum)
300 Degrees F
Case Pressure (Maximum)
150 psi
Ambient Temperature (Minimum)
40 Degrees F
Priming
Manual
Compatible Motor Frame
56J NEMA
Flow Rate @ 25 ft of Head (Maximum)
85 gpm
Best Efficiency Head
48 ft
Duty Cycle
Continuous

Description

Centrifugal Pump, Discharge Pipe Size 1 1/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 78 ft, Flow Rate (Maximum) 116 gpm, Horsepower (Maximum) 1 1/2 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 100 gpm
