  9. Pump, Centrifugal, SS, 1/2 HP, 3 PH

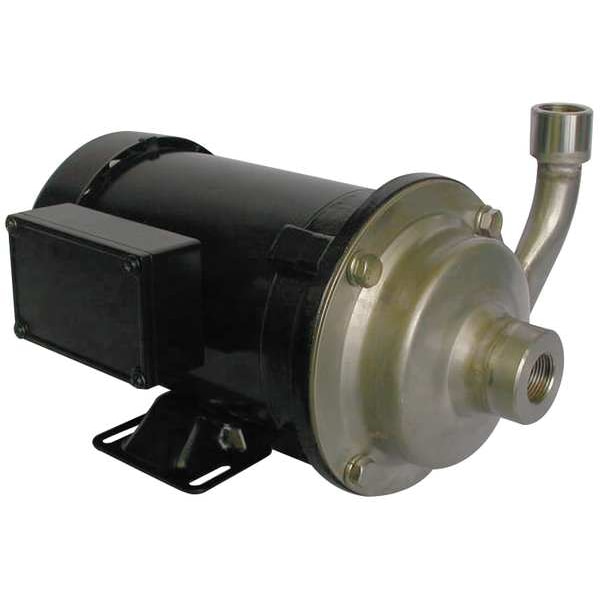

Dayton Pump, Centrifugal, SS, 1/2 HP, 3 PH 5WXT1 - main

Pump, Centrifugal, SS, 1/2 HP, 3 PH

  • Mfr # 5WXT1

  • Zoro # G1661116

product price: $868.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Housing Material
316 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
38 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5WXT1
Zoro #
G1661116
UPC #
190735354834
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/8 in
Width
9 1/4 in
Length
12 5/8 in
Height
7 7/8 in
Overall Length
12.6 in
Overall Height
7.9 in
Overall Width
9.3 in
Solid Diameter (Maximum)
0.13 in
Discharge Pipe Size
3/4 in
Intake Pipe Size
3/4 in
Shaft Outer Diameter
7/16 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
1/2 hp
Housing Material
316 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
38 gpm @ 5 ft
Max. Head
50 ft
Inlet
3/4 in NPT
Best Efficiency GPM @ Head
28 gpm @ 22 ft
Outlet
3/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Best Efficiency Range GPM @ Head
33 to 24 gpm @ 12 to 28 ft
Max. Case Pressure
150 psi
GPM of Water @ 5 Ft. of Head
38
Max. Specific Gravity
1.0
Agency Compliance
CUS
GPM of Water @ 10 Ft. of Head
34
Inlet Pressure
128 psi
Min. GPM @ Head
5 gpm @ 40 ft
NEMA/IEC Frame
56J
Max. Liquid Temp.
300 Degrees F
Bearing Type
Ball
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Includes
Manual
Service Factor
1.15
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
Screw Material
Stainless Steel
GPM of Water @ 30 Ft. of Head
20
Hz
60
Seal Type
Mechanical
Drain Plug
No
Duty
Continuous
Shaft Material
Stainless Steel
Max. Fluid Viscosity
260 SUS
Motor RPM
3,450 RPM
Impeller Type
Closed
GPM of Water @ 25 Ft. of Head
26
Port Rotation
90 Degrees Increments
Impeller Material
316 Stainless Steel
GPM of Water @ 20 Ft. of Head
29
Amps
3.0-2.8/1.4
GPM of Water @ 40 Ft. of Head
5
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
GPM of Water @ 15 Ft. of Head
32
Volute Material
316 Stainless Steel
Motor Type
Three-Phase Induction
Standards
CUS
Media Temperature (Maximum)
300 Degrees F
Specific Gravity (Maximum)
1
Impeller Design
Closed
Compatible Motor Frame
56J NEMA
Discharge Rotation
90 Degrees Increments
Intake Pipe Type
NPT
Best Efficiency Flow
28 gpm
Flow Rate (Minimum)
5 gpm
Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 40 ft of Head (Maximum)
5 gpm
Shut Off Pressure (Maximum)
150 psi
Nameplate Voltage
208-230/460V AC
Duty Cycle
Continuous
Current
3.0 to 2.8 or 1.4 A
Feet of Head (Maximum)
50 ft
Flow Rate @ 1 ft of Head (Maximum)
36.5 gpm
Frequency
60 Hz
Flow Rate @ 5 ft of Head (Maximum)
35.5 gpm
Flow Rate @ 30 ft of Head (Maximum)
20 gpm
Priming
Manual
Flow Rate @ 10 ft of Head (Maximum)
34 gpm
Flow Rate (Maximum)
38 gpm
Ambient Temperature (Minimum)
40 Degrees F
Case Pressure (Maximum)
150 psi
Flow Rate @ 20 ft of Head (Maximum)
29 gpm
Viscosity (Maximum)
260 SUS
For Use With Potable Systems
No
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 15 ft of Head (Maximum)
32 gpm
Best Efficiency Head
22 ft
Discharge Pipe Type
NPT
Media Temperature (Minimum)
40 Degrees F
Flow Rate @ 25 ft of Head (Maximum)
26 gpm
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
Horsepower (Maximum)
1/2 hp

Description

Centrifugal Pump, Discharge Pipe Size 3/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 50 ft, Flow Rate (Maximum) 38 gpm, Horsepower (Maximum) 1/2 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 3/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 34 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
