Dayton

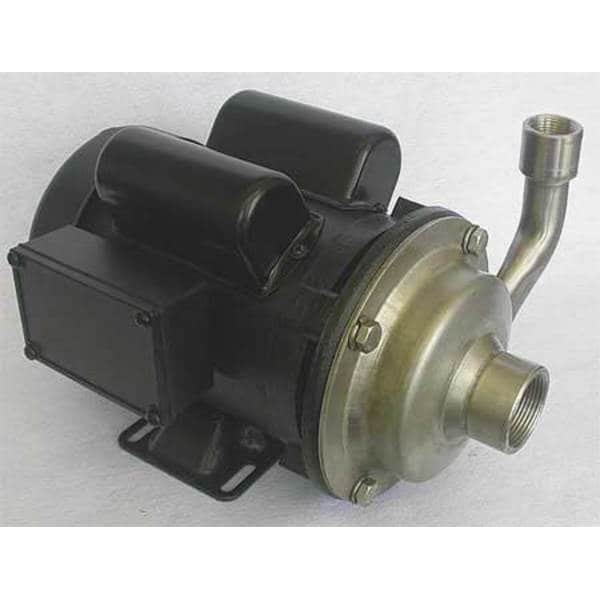

Pump, 3/4 HP, 115/230V, 9.0/4.5 Amp
Mfr # 4JMW9
Zoro # G0400662
Free Shipping & Returns
$704.99
Item successfully saved to ''
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 3/4 hp
- Housing Material 304 Stainless Steel
- Phase Single
- Voltage 115/230
- Max. GPM @ Head 58 gpm @ 5 ft
Customers Also Purchased
- Brand Dayton
- MFR # 4JMW9
- Zoro # G0400662
- UPC # 190735326732
- Country of Origin China
- Category Chemical-Resistant Pumps
Dimensions
Width | 9 1/4 in |
Height | 7 7/8 in |
Length | 12 15/16 in |
Manufacturers Warranty Length | 1 yr |
Max. Dia. Solids | 1/8 in |
Overall Height | 7.9 in |
Overall Width | 9.3 in |
Overall Length | 12.9 in |
Intake Pipe Size | 1 1/4 in |
Shaft Outer Diameter | 7/16 in |
Solid Diameter (Maximum) | 0.13 in |
Discharge Pipe Size | 3/4 in |
Details
Item | Chemical Resistant Centrifugal Pump |
HP | 3/4 hp |
Housing Material | 304 Stainless Steel |
Phase | Single |
Voltage | 115/230 |
Max. GPM @ Head | 58 gpm @ 5 ft |
Max. Head | 62 ft |
Best Efficiency GPM @ Head | 30 gpm @ 41 ft |
Inlet | 1-1/4 in NPT |
Outlet | 3/4 in NPT |
Motor Enclosure | Totally Enclosed Fan Cooled |
Min. GPM @ Head | 3 gpm @ 60 ft |
Max. Liquid Temp. | 200 Degrees F |
Includes | Manual |
GPM of Water @ 25 Ft. of Head | 44 |
Drain Plug | No |
GPM of Water @ 20 Ft. of Head | 47 |
Wetted Materials | 304 Stainless Steel, Carbon, Ceramic, Viton |
Hz | 60 |
GPM of Water @ 15 Ft. of Head | 48 |
GPM of Water @ 30 Ft. of Head | 38 |
Impeller Material | 304 Stainless Steel |
Impeller Type | Closed |
Motor RPM | 3,450 RPM |
GPM of Water @ 5 Ft. of Head | 58 |
NEMA/IEC Frame | 56J |
Amps | 9.0/4.5 |
Port Rotation | 90 Degrees Increments |
Seal Material | Carbon, Ceramic, Stainless Steel, Viton |
GPM of Water @ 40 Ft. of Head | 29 |
Max. Fluid Viscosity | 31 SUS |
GPM of Water @ 60 Ft. of Head | 3 |
Bearing Type | Ball |
Screw Material | Stainless Steel |
Max. Case Pressure | 150 psi |
Service Factor | 1.4 |
Seal Type | Mechanical |
Best Efficiency Range GPM @ Head | 20 to 48 gpm @ 48 to 15 ft |
Agency Compliance | CUS |
GPM of Water @ 50 Ft. of Head | 18 |
Max. Specific Gravity | 1.0 |
Inlet Pressure | 121 psi |
Shaft Material | Stainless Steel |
Duty | Continuous |
Application | Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating |
Motor Type | Permanent Split Capacitor |
GPM of Water @ 10 Ft. of Head | 52 |
Volute Material | 304 Stainless Steel |
Standards | CUS |
Flow Rate @ 20 ft of Head (Maximum) | 42 gpm |
Best Efficiency Head | 41 ft |
Flow Rate @ 15 ft of Head (Maximum) | 44 gpm |
Horsepower (Maximum) | 3/4 hp |
Intake Pipe Type | NPT |
Best Efficiency Flow | 30 gpm |
Discharge Rotation | 90 Degrees Increments |
Viscosity (Maximum) | 31 SUS |
Specific Gravity (Maximum) | 1 |
Flow Rate (Minimum) | 3 gpm |
Flow Rate @ 5 ft of Head (Maximum) | 48 gpm |
For Use With Potable Systems | No |
Flow Rate @ 40 ft of Head (Maximum) | 24 gpm |
Discharge Pipe Type | NPT |
Nameplate Voltage | 115/230V AC |
Frequency | 60 Hz |
Shut Off Pressure (Maximum) | 150 psi |
Media Temperature (Maximum) | 200 Degrees F |
Flow Rate @ 10 ft of Head (Maximum) | 46 gpm |
Ambient Temperature (Minimum) | 40 Degrees F |
Flow Rate @ 25 ft of Head (Maximum) | 36 gpm |
Compatible Motor Frame | 56J NEMA |
Motor Speed (Maximum) | 3,450 RPM |
Ambient Temperature (Maximum) | 104 Degrees F |
Media Temperature (Minimum) | 40 Degrees F |
Duty Cycle | Continuous |
Current | 10.0 or 5.0 A |
Priming | Manual |
Flow Rate @ 60 ft of Head (Maximum) | 3 gpm |
Flow Rate @ 1 ft of Head (Maximum) | 49 gpm |
Feet of Head (Maximum) | 62 ft |
Impeller Design | Closed |
Case Pressure (Maximum) | 150 psi |
Wetted Material | 304 Stainless Steel, Carbon, Ceramic, Viton |
Flow Rate (Maximum) | 58 gpm |
Flow Rate @ 30 ft of Head (Maximum) | 32 gpm |
Description
Centrifugal Pump, Discharge Pipe Size 3/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 62 ft, Flow Rate (Maximum) 58 gpm, Horsepower (Maximum) 3/4 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 1 1/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 46 gpm
