Shop DAYTON

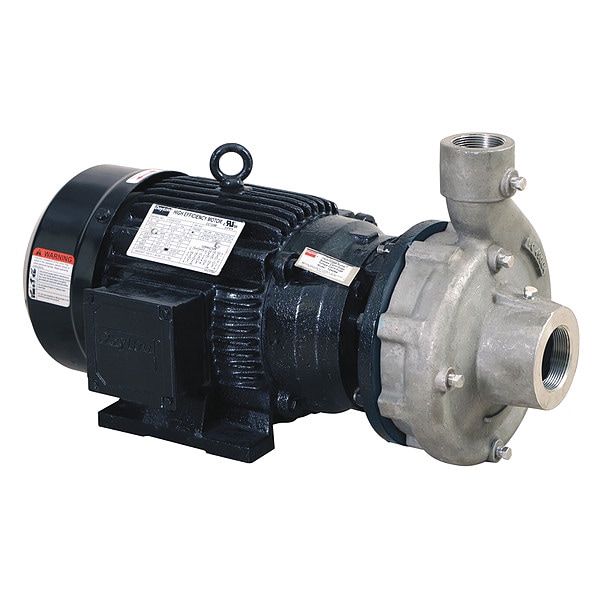

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ48

  • Zoro # G3722942

product price:  $1,765.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
5 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Stainless Steel
Inlet Size - Pumps
2 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ48
Zoro #
G3722942
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2 in NPT
Outlet Size - Pumps
1-1/2 in NPT
Compatible Discharge Pipe Size
1 1/2 in
Compatible Intake Pipe Size
2 in
Solid Diameter (Maximum)
0.13 in
Overall Length
20.7 in
Shaft Outer Diameter
7/8 in
Impeller Diameter
132 mm
Inlet Diameter
2 in
Discharge Diameter
1 1/2 in
Manufacturer Warranty Length
1 yr
Motor Frame Size
184JM
Overall Width
11.5 in
Overall Height
12.1 in

Details

HP - Pumps
5 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Housing Material - Pumps
Stainless Steel
Max. Pressure - Pumps
47 psi
Max. Head
105 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Motor Enclosure
Totally Enclosed Fan Cooled
Phase
Three
Frame
184JM
Discharge Pump Type
Centrifugal Pump
Best Efficiency Range GPM @ Head
123 to 188 gpm @ 90 to 68 ft
Amps
15.4/7.7
Item
Centrifugal Pump
Flow Rate @ 100 ft of Head (Maximum)
55 gpm
Flow Rate @ 50 ft of Head (Maximum)
198 gpm
Flow Rate @ 90 ft of Head (Maximum)
120 gpm
Horsepower
5 hp
Best Efficiency Head
90 ft
Discharge Type
NPT
Flow Rate @ 40 ft of Head (Maximum)
215 gpm
Shut Off Pressure (Maximum)
47 psi
Flow Rate @ 80 ft of Head (Maximum)
145 gpm
For Use With Potable Systems
No
Nameplate Voltage
230/460V AC
Best Efficiency Flow
188 gpm
Maximum Feet of Head
100 ft
Flow Rate @ 60 ft of Head (Maximum)
188 gpm
Intake Type
NPT
Flow Rate @ 70 ft of Head (Maximum)
162 gpm
Pump Housing Material
Stainless Steel
Volute Material
316 Stainless Steel
Hazardous Location Class
Not Rated
Drive Coupling Type
No Coupling
Full Load Current
12.6/6.3 A
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Shaft Seal Material
Carbon/Ceramic/FKM
Inlet Orientation
Side
Priming
Manual
Media Temperature - Minimum
40 Degrees F
Duty Cycle
Continuous
Discharge Rotation Increments
0 Degrees
Shaft Material
Stainless Steel
Motor Speed - Maximum
3,450 RPM
Inlet Position
Center
Flow Rate (Maximum)
215 gpm
Frequency
60 Hz
Thermal Overload Protection
Yes
Mounting Orientation
Horizontal
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Media Temperature - Maximum
200 Degrees F
Shut Off Pressure - Maximum
47 psi
Discharge Position
Center
Includes
Manual
Ambient Temperature - Maximum
40 Degrees C
Feet of Head (Minimum)
40 ft
Motor Design
Three-Phase
Case Pressure - Maximum
100 psi
Electrical Connection Type
Hardwired
Flow Rate (Minimum)
55 gpm
Service Factor
1.25
Feet of Head (Maximum)
100 ft
Standards
UL Recognized Motor
Specific Gravity (Maximum)
1
Chemical Compatibility
Non-Flammable Liquids
Viscosity (Maximum)
100 SUS
Number of Stages
1
Discharge Orientation
Top
Bearing Type
Ball
Shaft Seal Type
Mechanical
Impeller Material
Stainless Steel

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 5 hp, Nameplate Voltage 208-240/480V AC, Flow Rate @ 40 ft of Head (Maximum) 215 gpm, Flow Rate @ 60 ft of Head (Maximum) 188 gpm, Flow Rate @ 80 ft of Head (Maximum) 145 gpm, Maximum Feet of Head 100 ft, Compatible Intake Pipe Size 2 in, Intake Type NPT, Compatible Discharge Pipe Size 1 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 50 ft of Head (Maximum) 198 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
