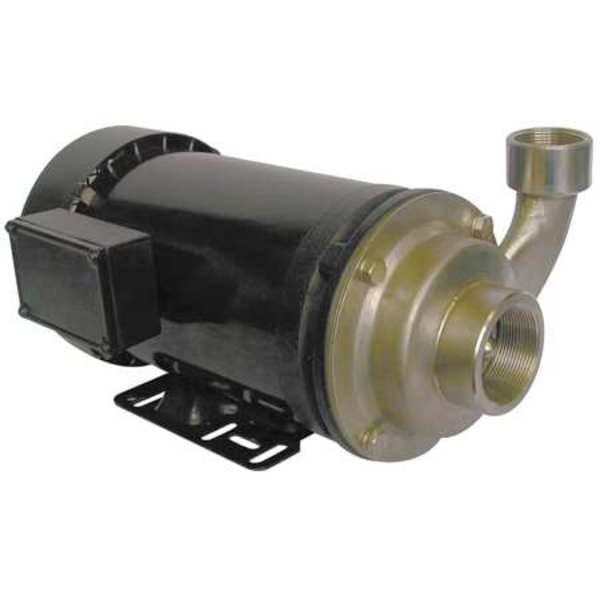

Dayton Pump, Centrifugal, SS, 2 HP, 3 PH 5WXT9 - main

Pump, Centrifugal, SS, 2 HP, 3 PH

  • Mfr # 5WXT9

  • Zoro # G1339317

product price: $1,432.99
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Housing Material
316 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
130 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5WXT9
Zoro #
G1339317
UPC #
190735354919
Country of Origin
China

Dimensions

Width
10 1/2 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/8 in
Length
14 9/16 in
Height
7 3/4 in
Overall Height
7.8 in
Overall Length
14.6 in
Overall Width
10.5 in
Solid Diameter (Maximum)
0.13 in
Intake Pipe Size
2 in
Shaft Outer Diameter
7/16 in
Discharge Pipe Size
1 1/2 in

Details

HP
2 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
316 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
130 gpm @ 5 ft
Max. Head
68 ft
Inlet
2 in NPT
Best Efficiency GPM @ Head
55 gpm @ 50 ft
Outlet
1-1/2 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Seal Type
Mechanical
GPM of Water @ 5 Ft. of Head
130
Max. Case Pressure
150 psi
GPM of Water @ 25 Ft. of Head
102
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Motor RPM
3,450 RPM
Port Rotation
90 Degrees Increments
Max. Liquid Temp.
300 Degrees F
Screw Material
Stainless Steel
Max. Fluid Viscosity
260 SUS
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
GPM of Water @ 50 Ft. of Head
55
Service Factor
1.15
GPM of Water @ 15 Ft. of Head
110
Includes
Manual
GPM of Water @ 60 Ft. of Head
24
Impeller Material
316 Stainless Steel
GPM of Water @ 30 Ft. of Head
92
Bearing Type
Ball
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
GPM of Water @ 40 Ft. of Head
85
Agency Compliance
CUS
Impeller Type
Closed
Max. Specific Gravity
1.0
Shaft Material
Stainless Steel
Best Efficiency Range GPM @ Head
100 to 26 gpm @ 26 to 60 ft
GPM of Water @ 10 Ft. of Head
114
Inlet Pressure
121 psi
GPM of Water @ 20 Ft. of Head
109
Hz
60
Drain Plug
No
Amps
9.6-9.2/4.6
Duty
Continuous
NEMA/IEC Frame
56J
Min. GPM @ Head
24 gpm @ 60 ft
Motor Type
Three-Phase Induction
Volute Material
316 Stainless Steel
Standards
CUS
Flow Rate @ 20 ft of Head (Maximum)
109 gpm
Flow Rate @ 10 ft of Head (Maximum)
114 gpm
Flow Rate @ 1 ft of Head (Maximum)
118 gpm
Specific Gravity (Maximum)
1
Nameplate Voltage
208-230/460V AC
Best Efficiency Head
50 ft
Flow Rate @ 40 ft of Head (Maximum)
75 gpm
Motor Speed (Maximum)
3,450 RPM
Impeller Design
Closed
Horsepower (Maximum)
2 hp
Flow Rate (Minimum)
24 gpm
Frequency
60 Hz
Feet of Head (Maximum)
68 ft
Flow Rate @ 5 ft of Head (Maximum)
117 gpm
Compatible Motor Frame
56J NEMA
Discharge Pipe Type
NPT
Ambient Temperature (Maximum)
104 Degrees F
Ambient Temperature (Minimum)
40 Degrees F
Duty Cycle
Continuous
Viscosity (Maximum)
260 SUS
Discharge Rotation
90 Degrees Increments
Case Pressure (Maximum)
150 psi
Media Temperature (Maximum)
300 Degrees F
Flow Rate @ 60 ft of Head (Maximum)
24 gpm
Intake Pipe Type
NPT
Flow Rate @ 15 ft of Head (Maximum)
106 gpm
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
For Use With Potable Systems
No
Flow Rate @ 30 ft of Head (Maximum)
92 gpm
Flow Rate (Maximum)
130 gpm
Current
4.0 or 2.0 A
Flow Rate @ 25 ft of Head (Maximum)
100 gpm
Best Efficiency Flow
55 gpm
Shut Off Pressure (Maximum)
150 psi
Media Temperature (Minimum)
40 Degrees F
Priming
Manual

Description

Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 68 ft, Flow Rate (Maximum) 130 gpm, Horsepower (Maximum) 2 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 114 gpm
