  9. Pump, Centrifugal, SS, 3 HP, 1 PH

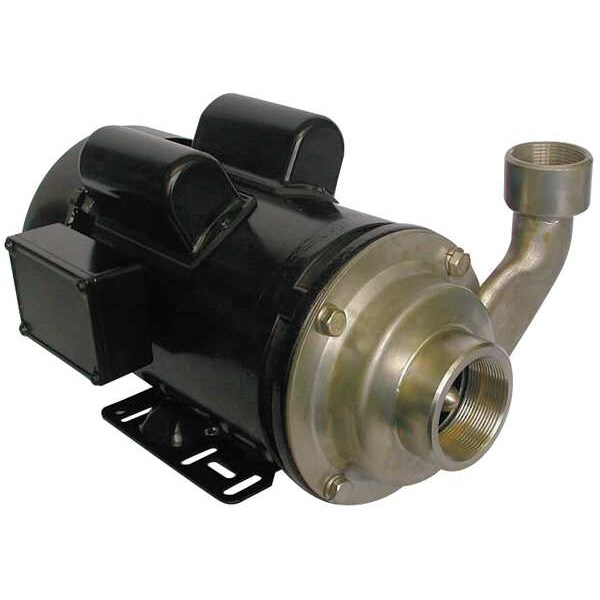

Dayton Pump, Centrifugal, SS, 3 HP, 1 PH 5WXU0 - main

Pump, Centrifugal, SS, 3 HP, 1 PH

  • Mfr # 5WXU0

  • Zoro # G0531282

product price: $1,518.99
/ea
Free Shipping & Returns

Key Features

HP
3 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
230
Max. GPM @ Head
150 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5WXU0
Zoro #
G0531282
UPC #
190735354926
Country of Origin
China

Dimensions

Height
7 3/4 in
Manufacturers Warranty Length
1 yr
Width
10 1/2 in
Length
16 7/8 in
Max. Dia. Solids
1/8 in
Overall Length
16.9 in
Overall Height
7.8 in
Overall Width
10.5 in
Discharge Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.13 in
Intake Pipe Size
2 in
Shaft Outer Diameter
7/16 in

Details

HP
3 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
316 Stainless Steel
Phase
Single
Voltage
230
Max. GPM @ Head
150 gpm @ 5 ft
Max. Head
81 ft
Inlet
2 in NPT
Best Efficiency GPM @ Head
90 gpm @ 48 ft
Outlet
1-1/2 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
GPM of Water @ 70 Ft. of Head
38
Service Factor
1.15
Min. GPM @ Head
38 gpm @ 70 ft
Impeller Type
Closed
Max. Fluid Viscosity
260 SUS
Inlet Pressure
115 psi
GPM of Water @ 25 Ft. of Head
126
Drain Plug
No
Port Rotation
90 Degrees Increments
Hz
60
Screw Material
Stainless Steel
Agency Compliance
CUS
Shaft Material
Stainless Steel
GPM of Water @ 20 Ft. of Head
131
Best Efficiency Range GPM @ Head
110 to 40 gpm @ 28 to 65 ft
GPM of Water @ 15 Ft. of Head
138
Seal Type
Mechanical
Duty
Continuous
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
Max. Case Pressure
150 psi
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
Motor Type
Capacitor Start Capacitor Run
GPM of Water @ 30 Ft. of Head
116
GPM of Water @ 5 Ft. of Head
150
Max. Specific Gravity
1.0
Impeller Material
316 Stainless Steel
GPM of Water @ 40 Ft. of Head
105
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Amps
14.5
GPM of Water @ 60 Ft. of Head
62
Includes
Manual
Max. Liquid Temp.
300 Degrees F
NEMA/IEC Frame
56J
GPM of Water @ 10 Ft. of Head
144
GPM of Water @ 50 Ft. of Head
85
Motor RPM
3,450 RPM
Bearing Type
Ball
GPM of Water @ 80 Ft. of Head
5
Volute Material
316 Stainless Steel
Standards
CUS
Flow Rate @ 15 ft of Head (Maximum)
138 gpm
Flow Rate @ 1 ft of Head (Maximum)
152 gpm
Ambient Temperature (Maximum)
104 Degrees F
Shut Off Pressure (Maximum)
150 psi
Specific Gravity (Maximum)
1
Media Temperature (Minimum)
40 Degrees F
Duty Cycle
Continuous
Flow Rate @ 10 ft of Head (Maximum)
144 gpm
Feet of Head (Maximum)
81 ft
Discharge Rotation
90 Degrees Increments
Ambient Temperature (Minimum)
40 Degrees F
Priming
Manual
Viscosity (Maximum)
260 SUS
Intake Pipe Type
NPT
Compatible Motor Frame
56J NEMA
Best Efficiency Flow
90 gpm
Best Efficiency Head
48 ft
Flow Rate @ 5 ft of Head (Maximum)
150 gpm
Discharge Pipe Type
NPT
Impeller Design
Closed
Flow Rate @ 20 ft of Head (Maximum)
131 gpm
Flow Rate (Minimum)
38 gpm
Flow Rate @ 80 ft of Head (Maximum)
3 gpm
Horsepower (Maximum)
3 hp
Case Pressure (Maximum)
150 psi
Nameplate Voltage
230V AC
Motor Speed (Maximum)
3,450 RPM
For Use With Potable Systems
No
Flow Rate @ 25 ft of Head (Maximum)
126 gpm
Current
14.5 A
Flow Rate @ 30 ft of Head (Maximum)
116 gpm
Flow Rate @ 70 ft of Head (Maximum)
25 gpm
Flow Rate @ 40 ft of Head (Maximum)
105 gpm
Flow Rate @ 60 ft of Head (Maximum)
62 gpm
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
Frequency
60 Hz
Media Temperature (Maximum)
300 Degrees F
Flow Rate (Maximum)
150 gpm

Description

Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 81 ft, Flow Rate (Maximum) 150 gpm, Horsepower (Maximum) 3 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 144 gpm
