Shop DAYTON

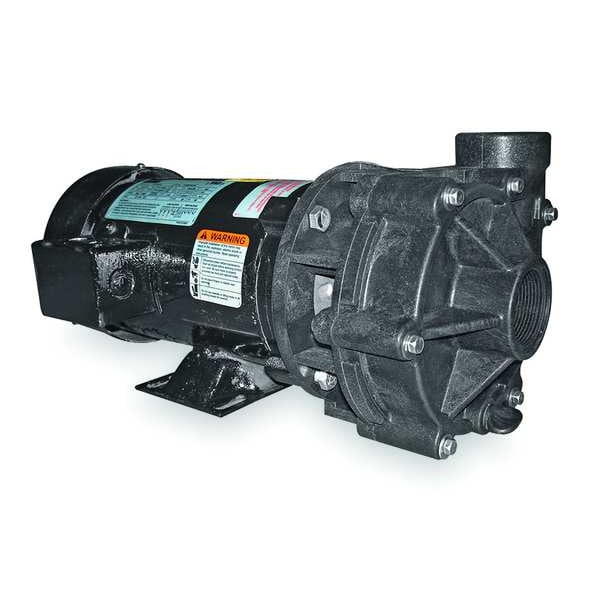

CentrifugalPump, 3/4hp, 3 Ph, 208-230/460V

  • Mfr # 2YEV8

  • Zoro # G1432995

product price:
$
780.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Housing Material
Noryl
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
37 gpm @ 10 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2YEV8
Zoro #
G1432995
UPC #
190735238653
Country of Origin
India

Dimensions

Length
15.8 in
Width
7 5/8 in
Height
7 1/2 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/4 in
Overall Width
7.6 in
Overall Length
15.8 in
Overall Height
7.5 in
Solid Diameter (Maximum)
0.25 in
Discharge Pipe Size
1 1/2 in
Intake Pipe Size
1 1/2 in
Shaft Outer Diameter
5/8 in
Motor Frame Size
56J
Impeller Diameter
4 13/16 in
Discharge Diameter
1 1/2 in
Inlet Diameter
1 1/2 in
Manufacturer Warranty Length
1 yr
Wire Rope Length
15.8 in

Details

Item
Centrifugal Pump
HP
3/4 hp
Housing Material
Noryl
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
37 gpm @ 10 ft
Max. Head
72 ft
Best Efficiency GPM @ Head
24 gpm @ 41 ft
Inlet
1-1/2 in NPT
Outlet
1-1/2 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Seal Material
Carbon, Ceramic, Noryl, Viton
Service Factor
1.15
GPM of Water @ 10 Ft. of Head
37
Bearing Type
Ball
Max. Liquid Temp.
180 Degrees F
Seal Type
Mechanical
GPM of Water @ 70 Ft. of Head
2
GPM of Water @ 25 Ft. of Head
31
Port Rotation
None
Includes
Manual
Hz
60
Min. GPM @ Head
6 gpm @ 65 ft
NEMA/IEC Frame
56J
GPM of Water @ 50 Ft. of Head
18
Max. Case Pressure
100 psi
Duty
Continuous
Inlet Pressure
75 psi
Impeller Type
Closed
GPM of Water @ 30 Ft. of Head
29
Impeller Material
Noryl
Application
Aggressive Liquid Applications, and Other General Purpose Pumping, Booster Service, Irrigation, Jockey Pump Service, Moderate Flow at Moderate Head Pressure, Spraying Systems, Transfer of Non-Flammable Liquids, Water Circulation
Shaft Material
Stainless Steel
Max. Fluid Viscosity
100 SUS
Motor RPM
3,450 RPM
GPM of Water @ 20 Ft. of Head
33
Screw Material
Stainless Steel
Best Efficiency Range GPM @ Head
18 to 33 gpm @ 50 to 20 ft
Drain Plug
Yes
GPM of Water @ 60 Ft. of Head
10
Max. Specific Gravity
1.0
GPM of Water @ 15 Ft. of Head
35
Volute Material
Noryl
Agency Compliance
c UL us
Amps
2.5-2.4/1.2
Wetted Materials
Carbon, Ceramic, Noryl, Viton
GPM of Water @ 40 Ft. of Head
24
Standards
UL Recognized Motor
Feet of Head (Maximum)
72 ft
Frequency
60 Hz
Flow Rate @ 10 ft of Head (Maximum)
37 gpm
Best Efficiency Flow
24 gpm
Impeller Design
Closed
Flow Rate @ 30 ft of Head (Maximum)
29 gpm
Shut Off Pressure (Maximum)
72 ft of head
Horsepower (Maximum)
3/4 hp
Flow Rate @ 15 ft of Head (Maximum)
35 gpm
Case Pressure (Maximum)
100 psi
Discharge Pipe Type
NPT
Flow Rate (Maximum)
37 gpm
Current
2.5 to 2.4 or 1.2 A
Flow Rate (Minimum)
6 gpm
Motor Speed (Maximum)
3,450 RPM
Wetted Material
Carbon, Ceramic, Noryl, Viton
Ambient Temperature (Maximum)
104 Degrees F
Best Efficiency Head
41 ft
Media Temperature (Maximum)
180 Degrees F
Flow Rate @ 20 ft of Head (Maximum)
33 gpm
Discharge Rotation
None
Specific Gravity (Maximum)
1
Duty Cycle
Continuous
Electrical Connection Type
Hardwired
Compatible Motor Frame
56J NEMA
Nameplate Voltage
230/460V AC
Intake Pipe Type
NPT
Flow Rate @ 40 ft of Head (Maximum)
24 gpm
Priming
Manual
Flow Rate @ 25 ft of Head (Maximum)
31 gpm
For Use With Potable Systems
No
Viscosity (Maximum)
100 SUS
Pump Housing Material
Plastic
Number of Stages
1
Chemical Compatibility
Non-Flammable Liquids
Feet of Head (Minimum)
10 ft
Pumping Application
Booster Services, Irrigation, Jockey Pump Services, Spraying Systems, Water Circulation
Horsepower
3/4 hp
Ambient Temperature - Maximum
104 Degrees F
Shut Off Pressure - Maximum
31.1 psi
Media Temperature - Minimum
40 Degrees F
Flow Rate @ 50 ft of Head (Maximum)
18 gpm
Thermal Overload Protection
Yes
Flow Rate @ 10 ft of Head - Maximum
37 gpm
Discharge Position
Offset
Motor Design
Three-Phase
Motor Speed - Maximum
3,450 RPM
Inlet Position
Center
Shaft Seal Type
Mechanical
Case Pressure - Maximum
100 psi
Inlet Orientation
Side
Drive Coupling Type
No Coupling
Shaft Seal Material
Carbon/Ceramic, FKM, Noryl
Mounting Orientation
Horizontal
Full Load Current
2.4/1.2 A
Discharge Rotation Increments
0 Degrees
Media Temperature - Maximum
180 Degrees F
Discharge Orientation
Top
Hazardous Location Class
Not Rated

Description

Centrifugal Pump, Phase Three, Pump Housing Material Plastic, Horsepower 3/4 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 24 gpm, Flow Rate @ 60 ft of Head (Maximum) Not Applicable, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 5 ft of Head (Maximum) Not Applicable, Flow Rate @ 10 ft of Head (Maximum) 37 gpm, Flow Rate @ 15 ft of Head (Maximum) 35 gpm, Flow Rate @ 20 ft of Head (Maximum) 33 gpm
