  9. Pump, Centrifugal, SS, 3/4 HP, 1 PH

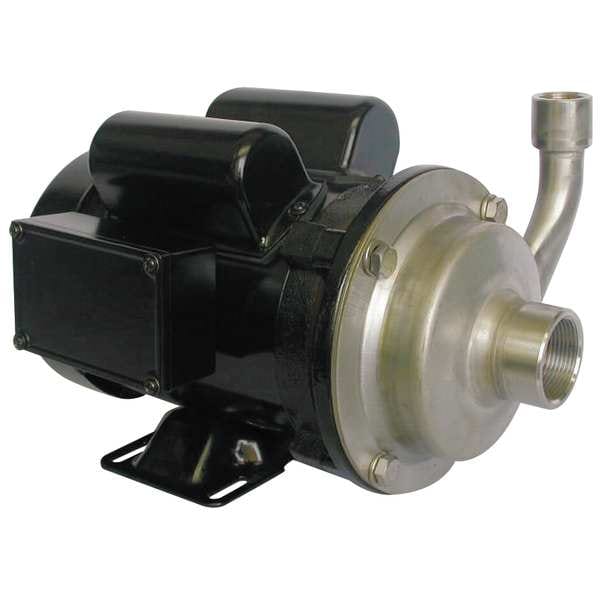

Dayton Pump, Centrifugal, SS, 3/4 HP, 1 PH 5WXT2 - main

Pump, Centrifugal, SS, 3/4 HP, 1 PH

  • Mfr # 5WXT2

  • Zoro # G1093041

original price: $1,019.99
10% off
new price: $917.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
58 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5WXT2
Zoro #
G1093041
UPC #
190735354841
Country of Origin
China

Dimensions

Width
9 1/4 in
Length
12 15/16 in
Height
7 7/8 in
Max. Dia. Solids
1/8 in
Manufacturers Warranty Length
1 yr
Overall Height
7.9 in
Overall Width
9.3 in
Overall Length
12.9 in
Solid Diameter (Maximum)
0.13 in
Intake Pipe Size
1 1/4 in
Discharge Pipe Size
3/4 in
Shaft Outer Diameter
7/16 in

Details

HP
3/4 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
58 gpm @ 5 ft
Max. Head
62 ft
Best Efficiency GPM @ Head
30 gpm @ 41 ft
Inlet
1-1/4 in NPT
Outlet
3/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Shaft Material
Stainless Steel
GPM of Water @ 50 Ft. of Head
18
Amps
9.0/4.5
Motor RPM
3,450 RPM
GPM of Water @ 20 Ft. of Head
47
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
Drain Plug
No
Includes
Manual
Seal Type
Mechanical
GPM of Water @ 30 Ft. of Head
38
Max. Case Pressure
150 psi
Motor Type
Capacitor Start Capacitor Run
Best Efficiency Range GPM @ Head
48 to 20 gpm @ 15 to 48 ft
GPM of Water @ 40 Ft. of Head
29
Bearing Type
Ball
Max. Liquid Temp.
300 Degrees F
Screw Material
Stainless Steel
Impeller Material
316 Stainless Steel
Agency Compliance
CUS
GPM of Water @ 25 Ft. of Head
44
GPM of Water @ 10 Ft. of Head
52
Port Rotation
90 Degrees Increments
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
Hz
60
Duty
Continuous
Service Factor
1.4
GPM of Water @ 5 Ft. of Head
58
NEMA/IEC Frame
56J
Min. GPM @ Head
3 gpm @ 60 ft
Max. Specific Gravity
1.0
Max. Fluid Viscosity
260 SUS
GPM of Water @ 15 Ft. of Head
48
Inlet Pressure
121 psi
GPM of Water @ 60 Ft. of Head
3
Impeller Type
Closed
Volute Material
316 Stainless Steel
Standards
CUS
Priming
Manual
Nameplate Voltage
115/230V AC
Case Pressure (Maximum)
150 psi
Frequency
60 Hz
Best Efficiency Flow
30 gpm
Intake Pipe Type
NPT
Flow Rate @ 10 ft of Head (Maximum)
46 gpm
Duty Cycle
Continuous
Media Temperature (Minimum)
40 Degrees F
Ambient Temperature (Maximum)
104 Degrees F
Best Efficiency Head
41 ft
Flow Rate @ 15 ft of Head (Maximum)
44 gpm
Current
10.0 or 5.0 A
Horsepower (Maximum)
3/4 hp
Flow Rate (Maximum)
58 gpm
Compatible Motor Frame
56J NEMA
Flow Rate (Minimum)
3 gpm
Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 60 ft of Head (Maximum)
3 gpm
Flow Rate @ 5 ft of Head (Maximum)
48 gpm
Media Temperature (Maximum)
300 Degrees F
Motor Speed (Maximum)
3,450 RPM
Viscosity (Maximum)
260 SUS
Shut Off Pressure (Maximum)
150 psi
Specific Gravity (Maximum)
1
Discharge Rotation
90 Degrees Increments
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
Flow Rate @ 30 ft of Head (Maximum)
32 gpm
Flow Rate @ 40 ft of Head (Maximum)
24 gpm
Flow Rate @ 1 ft of Head (Maximum)
49 gpm
Impeller Design
Closed
For Use With Potable Systems
No
Discharge Pipe Type
NPT
Flow Rate @ 25 ft of Head (Maximum)
36 gpm
Flow Rate @ 20 ft of Head (Maximum)
42 gpm
Feet of Head (Maximum)
62 ft

Description

Centrifugal Pump, Discharge Pipe Size 3/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 62 ft, Flow Rate (Maximum) 58 gpm, Horsepower (Maximum) 3/4 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 1 1/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 46 gpm
