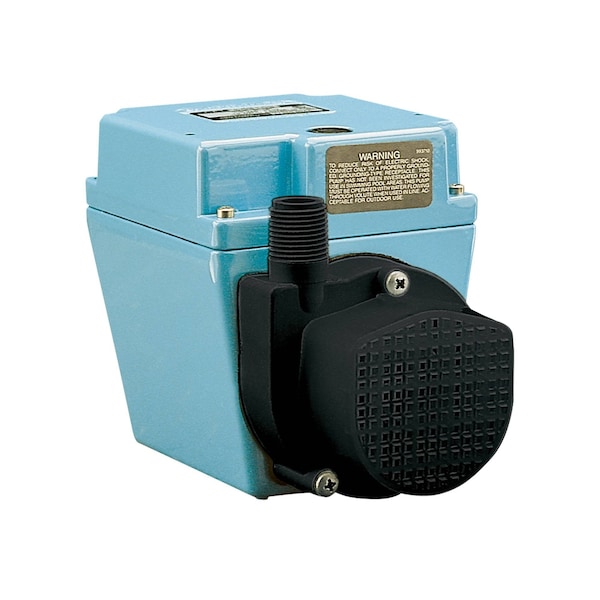

Shop LITTLE GIANT PUMP

Pump, 7 In. L, 4-1/2 In. W, 5-1/2 In. H

  • Mfr # 503216

  • Zoro # G0506055

product price:  $279.90
/ea
Free Shipping & Returns

Key Features

HP
1/15 hp
Voltage
230V
Full Load Amps
1.4 A
Cord Length
12 ft
Impeller Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
503216
Zoro #
G0506055
UPC #
010121039018
Country of Origin
Mexico

Dimensions

Cord Length
12 ft
Length
7 in
Width
4 1/2 in
Height
5 1/2 in
Overall Width
4.5 in
Overall Length
7 in
Overall Height
5.5 in
Compatible Discharge Pipe Size
1/2 in
Compatible Intake Pipe Size
1/2 in
Inlet Diameter
1/2 in
Discharge Diameter
1/2 in
Wire Rope Length
7 in

Details

Item
Centrifugal Pump
HP
1/15 hp
Voltage
230V
Full Load Amps
1.4 A
Impeller Material
Nylon
Duty
Continuous
Max. Head
21 ft
Seal Material
Fluoroelastomer
Hz
50/60
Outlet
1/2 in (M)NPT
GPH of Water @ 20 Ft. of Head
90
Housing Material
Nylon
Inlet Type
1/2 in (F)NPT
GPH of Water @ 5 Ft. of Head
517
Inlet
1/2 in (F)NPT
Overload Protection
yes
Features
In-line or Submersible
GPH of Water @ 1 Ft. of Head
600
GPH of Water @ 10 Ft. of Head
414
Amps
3.2 A
Standards
cCSAus Listed
Minimum Flow Rate
0 gph
Horsepower
1/15 hp
Flow Rate @ 10 ft of Head (Maximum)
414 gph
Motor Sealing
Oil-Filled
Series
3E-12NRY
Maximum Media Temperature
120 Degrees F
Flow Rate @ 5 ft of Head (Maximum)
517 gph
Intake Type
NPT
Maximum Feet of Head
21 ft
Feet of Head (Minimum)
0 ft
Nameplate Voltage
230V AC
Discharge Type
NPT
Maximum Flow Rate
600 gph
Duty Cycle
Continuous
Flow Rate @ 15 ft of Head (Maximum)
250 gph
Seal Type
Mechanical
Pump Housing Material
Aluminum
Frequency
60 Hz
Compatible with Media Type
Oil
Pumping Application
Coolant Recirculating, Liquid Transfer
Flow Rate @ 1 ft of Head (Maximum)
600 gph
Thermal Overload Protection
Yes
Ambient Temperature - Maximum
120 Degrees F
Flow Rate (Maximum)
600 gph
Ambient Temperature - Minimum
30 Degrees F
Chemical Compatibility
Oil
Feet of Head (Maximum)
21 ft
Flow Rate (Minimum)
0 gph
Full Load Current
3.2A
Shaft Seal Material
Fluoroelastomer
Number of Stages
1
Drive Coupling Type
No Coupling
Phase
Single
Media Temperature - Minimum
30 Degrees F
Case Pressure - Maximum
9.1 psi
Pump Design
Submersible
Suction Lift (Maximum)
0 ft
Media Temperature - Maximum
120 Degrees F
Shaft Seal Type
Mechanical

Description

Centrifugal Pump, Pump Housing Material Cast Aluminum, Horsepower 1/15 hp, Nameplate Voltage 230V AC, Flow Rate @ 1 ft of Head (Maximum) 600 gph, Flow Rate @ 5 ft of Head (Maximum) 517 gph, Flow Rate @ 10 ft of Head (Maximum) 414 gph, Flow Rate @ 15 ft of Head (Maximum) 250 gph, Maximum Feet of Head 21 ft, Compatible Intake Pipe Size 1/2 in, Compatible Discharge Pipe Size 1/2 in, Intake Type NPT, Discharge Type NPT, Cord Length 12 ft, Motor Sealing Oil-Filled, Amps 3.2 A
