  9. Pump, Centrifugal, SS, 3/4 HP, 3 PH

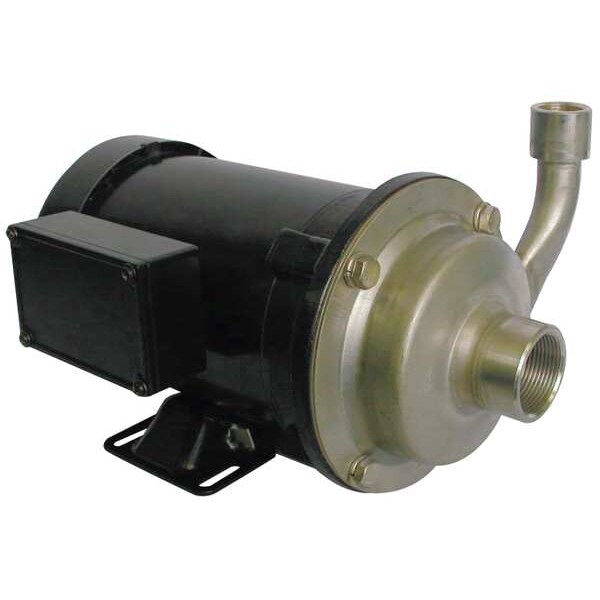

Dayton Pump, Centrifugal, SS, 3/4 HP, 3 PH 5WXT3 - main

Pump, Centrifugal, SS, 3/4 HP, 3 PH

  • Mfr # 5WXT3

  • Zoro # G0553305

product price: $1,200.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Housing Material
316 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
58 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5WXT3
Zoro #
G0553305
UPC #
190735354858
Country of Origin
China

Dimensions

Width
9 1/4 in
Length
12 15/16 in
Manufacturers Warranty Length
1 yr
Height
7 7/8 in
Max. Dia. Solids
1/8 in
Overall Width
9.3 in
Overall Length
12.9 in
Overall Height
7.9 in
Intake Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.13 in
Discharge Pipe Size
3/4 in
Shaft Outer Diameter
7/16 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
3/4 hp
Housing Material
316 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
58 gpm @ 5 ft
Max. Head
62 ft
Inlet
1-1/4 in NPT
Best Efficiency GPM @ Head
30 gpm @ 41 ft
Outlet
3/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Seal Type
Mechanical
Inlet Pressure
123 psi
NEMA/IEC Frame
56J
Impeller Material
316 Stainless Steel
GPM of Water @ 5 Ft. of Head
58
Port Rotation
90 Degrees Increments
Max. Specific Gravity
1.0
GPM of Water @ 20 Ft. of Head
47
Impeller Type
Closed
GPM of Water @ 15 Ft. of Head
48
Bearing Type
Ball
Best Efficiency Range GPM @ Head
48 to 20 gpm @ 15 to 48 ft
Amps
3.8-3.4/1.7
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
GPM of Water @ 50 Ft. of Head
18
GPM of Water @ 10 Ft. of Head
52
Max. Fluid Viscosity
260 SUS
GPM of Water @ 25 Ft. of Head
44
GPM of Water @ 40 Ft. of Head
29
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
Shaft Material
Stainless Steel
Max. Case Pressure
150 psi
Hz
60
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
Agency Compliance
CUS
Motor RPM
3,450 RPM
Duty
Continuous
Min. GPM @ Head
3 gpm @ 60 ft
Includes
Manual
Screw Material
Stainless Steel
Max. Liquid Temp.
300 Degrees F
GPM of Water @ 60 Ft. of Head
3
GPM of Water @ 30 Ft. of Head
38
Service Factor
1.15
Drain Plug
No
Volute Material
316 Stainless Steel
Motor Type
Three-Phase Induction
Standards
CUS
For Use With Potable Systems
No
Shut Off Pressure (Maximum)
150 psi
Intake Pipe Type
NPT
Flow Rate @ 60 ft of Head (Maximum)
3 gpm
Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 25 ft of Head (Maximum)
36 gpm
Media Temperature (Maximum)
300 Degrees F
Flow Rate @ 30 ft of Head (Maximum)
32 gpm
Specific Gravity (Maximum)
1
Flow Rate @ 20 ft of Head (Maximum)
42 gpm
Ambient Temperature (Minimum)
40 Degrees F
Priming
Manual
Current
3.8 to 3.4 or 1.7 A
Media Temperature (Minimum)
40 Degrees F
Case Pressure (Maximum)
150 psi
Discharge Pipe Type
NPT
Motor Speed (Maximum)
3,450 RPM
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
Flow Rate @ 1 ft of Head (Maximum)
49 gpm
Discharge Rotation
90 Degrees Increments
Compatible Motor Frame
56J NEMA
Flow Rate @ 5 ft of Head (Maximum)
48 gpm
Frequency
60 Hz
Flow Rate @ 40 ft of Head (Maximum)
24 gpm
Horsepower (Maximum)
3/4 hp
Best Efficiency Head
41 ft
Duty Cycle
Continuous
Nameplate Voltage
208-230/460V AC
Flow Rate (Maximum)
58 gpm
Impeller Design
Closed
Feet of Head (Maximum)
62 ft
Viscosity (Maximum)
260 SUS
Flow Rate @ 15 ft of Head (Maximum)
44 gpm
Best Efficiency Flow
30 gpm
Flow Rate (Minimum)
3 gpm
Flow Rate @ 10 ft of Head (Maximum)
46 gpm

Description

Centrifugal Pump, Discharge Pipe Size 3/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 62 ft, Flow Rate (Maximum) 58 gpm, Horsepower (Maximum) 3/4 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 1 1/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 46 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
