Shop DAYTON

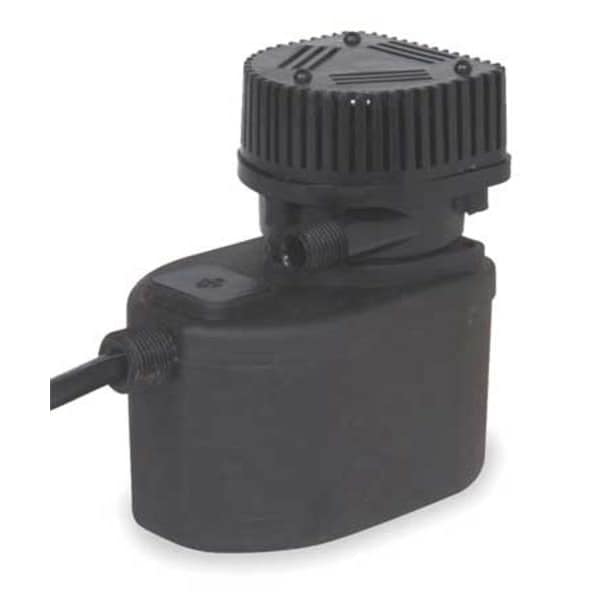

Pump, Compact Submersible, 1/50 HP

  • Mfr # 2HNN3

  • Zoro # G1207001

product price:  $106.99
/ea
Free Shipping & Returns

Key Features

HP
1/50 hp
Voltage
115V
Full Load Amps
1.3 A
Cord Length
6 ft
Impeller Material
POM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2HNN3
Zoro #
G1207001
UPC #
190735220108
Country of Origin
China

Dimensions

Cord Length
6 ft
Width
2 5/8 in
Length
4 17/32 in
Height
4 27/32 in
Compatible Discharge Pipe Size
1/4 in
Overall Height
4.8 in
Overall Length
4.5 in
Overall Width
2.6 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
1/4 in
Discharge Diameter
1/4 in
Wire Rope Length
4.5 in

Details

Item
Centrifugal Pump
HP
1/50 hp
Voltage
115V
Full Load Amps
1.3 A
Impeller Material
POM
Duty
Continuous
Seal Material
Viton
GPH of Water @ 5 Ft. of Head
180
Inlet
Screened
GPH of Water @ 1 Ft. of Head
230
Overload Protection
Thermal
Agency Compliance
UL and CSA
Outlet
1/4 in (M)NPT
GPH of Water @ 10 Ft. of Head
115
Housing Material
Acetal
Inlet Type
Screened
Hz
60
Features
Thermoplastic Motor Housing Handles Water with a Higher Mineral Content
Amps
1.3 A
Flow Rate @ 10 ft of Head (Maximum)
115 gph
Thermal Overload Protection
Yes
Feet of Head (Minimum)
1 ft
Pumping Application
Condensate Removal, Decorative Water, Evaporative Cooling, Coolant Recirculating, Vaporizers
Compatible with Media Type
Oil
Maximum RPM
3,400 RPM
Maximum Feet of Head
11 ft
Maximum Flow Rate
230 gph
Discharge Type
NPT
Flow Rate @ 1 ft of Head (Maximum)
230 gph
Duty Cycle
Continuous
Standards
cCSAus Certified
Motor Sealing
Epoxy Encapsulated
Electrical Connection Type
Plug-In
Flow Rate @ 5 ft of Head (Maximum)
180 gph
Horsepower
1/50 hp
Nameplate Voltage
115V AC
Frequency
60 Hz
Intake Type
Screened
Pump Housing Material
Plastic
Inlet Standard
Screened
Feet of Head (Maximum)
11 ft
Phase
Single
Shaft Seal Material
FKM
Chemical Compatibility
Oil
Number of Stages
1
Drive Coupling Type
No Coupling
Full Load Current
1.3 A
Flow Rate (Maximum)
230 gph

Description

Centrifugal Pump, Pump Housing Material Plastic, Horsepower 1/50 hp, Nameplate Voltage 115V AC, Flow Rate @ 1 ft of Head (Maximum) 230 gph, Flow Rate @ 5 ft of Head (Maximum) 180 gph, Flow Rate @ 10 ft of Head (Maximum) 115 gph, Maximum Feet of Head 11 ft, Compatible Intake Pipe Size Not Applicable, Compatible Discharge Pipe Size 1/4 in, Intake Type Screened, Discharge Type NPT, Cord Length 6 ft, Motor Sealing Epoxy Encapsulated, Amps 1.3 A, Compatible with Media Type Oil, Duty Cycle Continuous
