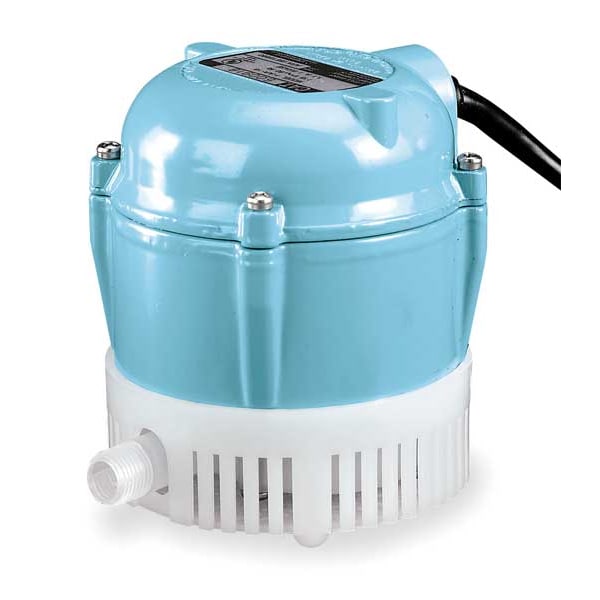

Shop LITTLE GIANT PUMP

Pump, 4-1/4 In. L, 4-1/8 In. W, 4-1/4 In. H

  • Mfr # 500500

  • Zoro # G2081457

product price:  $123.30
/ea
Free Shipping & Returns

Key Features

HP
1/200 hp
Voltage
115V
Full Load Amps
1.1 A
Cord Length
18 ft
Impeller Material
Polypropylene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
500500
Zoro #
G2081457
UPC #
010121009189
Country of Origin
Mexico

Dimensions

Cord Length
18 ft
Width
4 1/8 in
Length
4 1/4 in
Height
4 1/4 in
Overall Length
4.3 in
Overall Height
3.7 in
Overall Width
4.1 in
Compatible Discharge Pipe Size
1/2 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1/4 in, 1/2 in
Inlet Diameter
1/4 in, 1/2 in
Discharge Diameter
1/2 in
Wire Rope Length
4.3 in

Details

Item
Centrifugal Pump
HP
1/200 hp
Voltage
115V
Full Load Amps
1.1 A
Impeller Material
Polypropylene
Duty
Continuous
Max. Head
7 ft
Seal Material
Nitrile Rubber
GPH of Water @ 5 Ft. of Head
100
Inlet
Smooth
Inlet Type
Smooth
Cord Type
3-Conductor, Resists Oil
Includes
Garden Hose Adapter
Outlet
1/4 in (M)NPT
Features
Bottom Pump Inlet has Snap-Off Screen for Easy Cleaning
GPH of Water @ 1 Ft. of Head
170
Housing Material
Polypropylene
Amps
1.1 A
Standards
cCSAus Listed
Pumping Application
Coolant Recirculating, Liquid Transfer
Motor Sealing
Oil-Filled
Maximum Feet of Head
7 ft
Duty Cycle
Continuous
Frequency
60 Hz
Flow Rate @ 5 ft of Head (Maximum)
100 gph
Electrical Connection Type
Hardwired
Flow Rate @ 1 ft of Head (Maximum)
170 gph
Horsepower
1/200 hp
Discharge Type
NPT
Maximum Flow Rate
170 gph
Intake Type
Screened
Seal Type
Mechanical
Pump Housing Material
Aluminum
Compatible with Media Type
Oil
Maximum Media Temperature
120 Degrees F
Series
1-A
Nameplate Voltage
115V AC
Drive Coupling Type
No Coupling
Ambient Temperature - Minimum
30 Degrees F
Inlet Standard
Screened
Chemical Compatibility
Oil
Shaft Seal Material
Buna-N
Pump Design
Submersible
Phase
Single
Media Temperature - Maximum
120 Degrees F
Suction Lift (Maximum)
0 ft
Number of Stages
1
Case Pressure - Maximum
3.03 psi
Feet of Head (Maximum)
7 ft
Shaft Seal Type
Mechanical
Full Load Current
1.1A
Flow Rate (Maximum)
170 gph
Ambient Temperature - Maximum
120 Degrees F
Media Temperature - Minimum
30 Degrees F

Description

Centrifugal Pump, Pump Housing Material Cast Aluminum, Horsepower 1/200 hp, Nameplate Voltage 115V AC, Flow Rate @ 1 ft of Head (Maximum) 170 gph, Flow Rate @ 5 ft of Head (Maximum) 100 gph, Maximum Feet of Head 7 ft, Compatible Intake Pipe Size 1/4 in, 1/2 in, Compatible Discharge Pipe Size 1/2 in, Intake Type Screened, Discharge Type NPT, Cord Length 18 ft, Motor Sealing Oil-Filled, Amps 1.1 A, Compatible with Media Type Oil, Duty Cycle Continuous, Electrical Connection Type Hardwired

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
