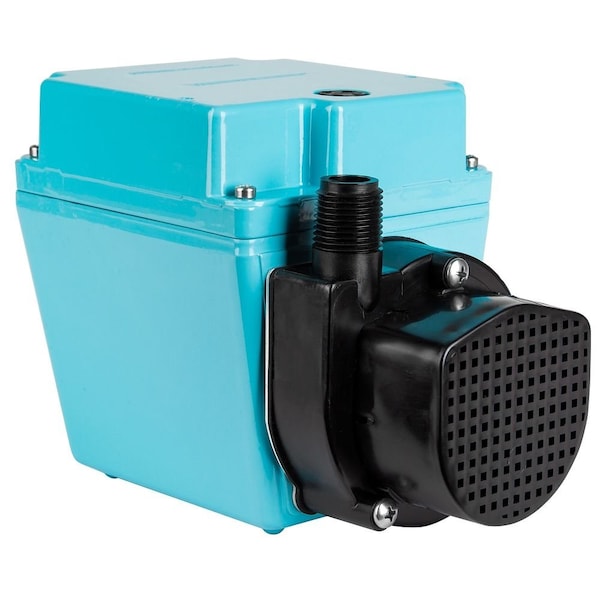

Shop LITTLE GIANT PUMP

Circulating Pump, 810 gph, 230V, 50/60 Hz

  • Mfr # 504216

  • Zoro # G0613341

product price:  $354.99
/ea
Free Shipping & Returns

Key Features

HP
1/12
Voltage
230V
Min. GPM @ Head
173 gph @ 20 ft.
Pump Type
Oil Filled, Direct Drive Pump
Max. GPM @ Head
810 gph @ 1 ft.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
504216
Zoro #
G0613341
UPC #
-
Country of Origin
Mexico

Dimensions

Inlet/Outlet Size
3/4" FNPT / 1/2" MNPT
Cord Length
9 ft
Discharge Diameter
1/2 in

Details

Item
Centrifugal Pump
HP
1/12
Voltage
230V
Min. GPM @ Head
173 gph @ 20 ft.
Pump Type
Oil Filled, Direct Drive Pump
Max. GPM @ Head
810 gph @ 1 ft.
Connection Style
NPT
Housing Material
Cast Aluminum
Flow Rate (Maximum)
810 gph
Motor Sealing
Oil-Filled
Shaft Seal Material
FKM
Chemical Compatibility
Machine Oil, Water
Ambient Temperature - Maximum
120 Degrees F
Pumping Application
Coolant Recirculating, Liquid Transfer
Media Temperature - Maximum
120 Degrees F
Suction Lift (Maximum)
0 ft
Standards
CSA/UL
Ambient Temperature - Minimum
30 Degrees F
Nameplate Voltage
230V AC
Pump Design
Submersible
Media Temperature - Minimum
30 Degrees F
Case Pressure - Maximum
10.62 psi
Flow Rate @ 10 ft of Head (Maximum)
613 gph
Full Load Current
3.5A
Flow Rate @ 1 ft of Head (Maximum)
710 gph
Feet of Head (Maximum)
24.5 ft
Inlet Standard
Screened
Impeller Material
Nylon
Horsepower
1/12 hp
Pump Housing Material
Aluminum
Phase
Single
Flow Rate @ 5 ft of Head (Maximum)
745 gph
Drive Coupling Type
No Coupling
Number of Stages
1

Description

Centrifugal Pump, Pump Housing Material Aluminum, Horsepower 1/12 hp, Nameplate Voltage 230V AC, Flow Rate @ 1 ft of Head (Maximum) 710 gph, Flow Rate @ 5 ft of Head (Maximum) 745 gph, Flow Rate @ 10 ft of Head (Maximum) 613 gph, Cord Length 9 ft, Motor Sealing Oil-Filled, Impeller Material Nylon
